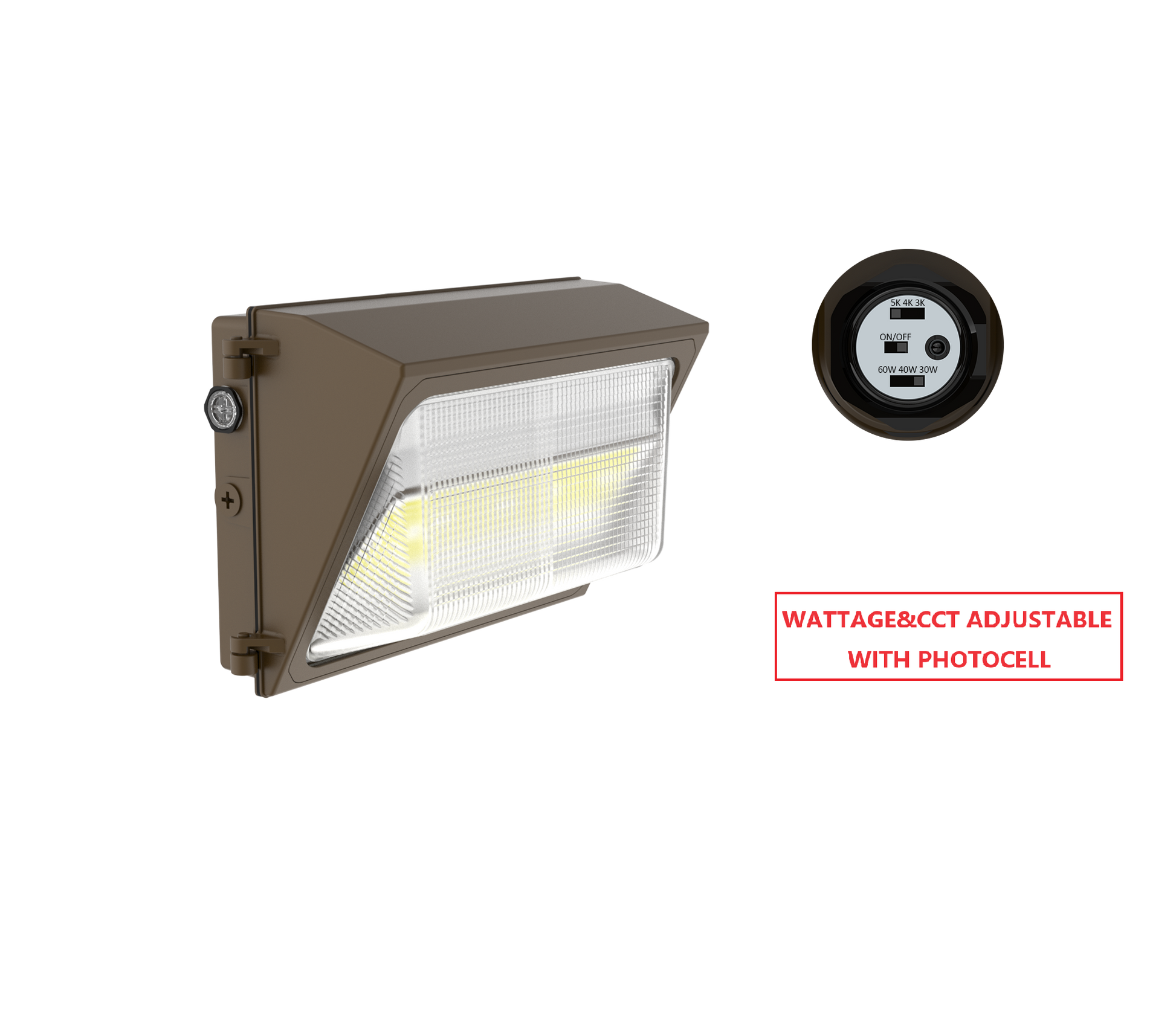

WMGE 80W LED WALLPACK LIGHT WITH CCT&WATTAGE ADJUSTABLE

80W CCT&WATTAGE ADJUSTABLE LED WALLPACK LIGHT

INTRODUCTION :

WMGE Series LED Wallpacks Light is a thin ,new shape with more advanced chip technologies,having a much longer life and faster heat dissipation.Available in 60W, 80W, 120W, and 150W with adjustable wattage ranging from 40W to 150W.This series features a three-in-one design, enabling independent adjustment of Watt, CCT through slide switch.Certifications: UL/CUL, DLC. Suitable for wet locations.

FEATURES:

• ADC12 Aluminum heat sink,outdoor powder coating
• Optical Lens: Borosilicate glass.
• Photocell is optional
• Aluminum LED board: High conductive, waterproof, aging resistance, salt mist resistance, Make sure the safety and long lifetime.

SKU:  WMGE-50-80-DCCT-P-WM-BR

PRODUCT PARAMETERS:

• Input: 120-277VAC
• Efficacy: 135 LM/W
• LED: Lumileds,CRI70
• CCT: 3000K/4000K/5000K Selectable
• Power: 50/60/80W (Selectable)
• Lumen: 6750/8100/10800 lm
• Dimmable: 0-10V/PWM
• Operating Temperature: -40°C to 40°C
• PF: >0.9
• THD: <20%
• Warranty: 5Years

• Dimensions:14.34*7.43*9.27 inch
• Master Carton: 15.35*9.06*11.61 inch
• Gross Weight：9.9 lbs
• Q’TY/CTN：1 pcs / 1 ctn

   SPEC SHEET (click to download)

   INSTALLATION (click to download)
