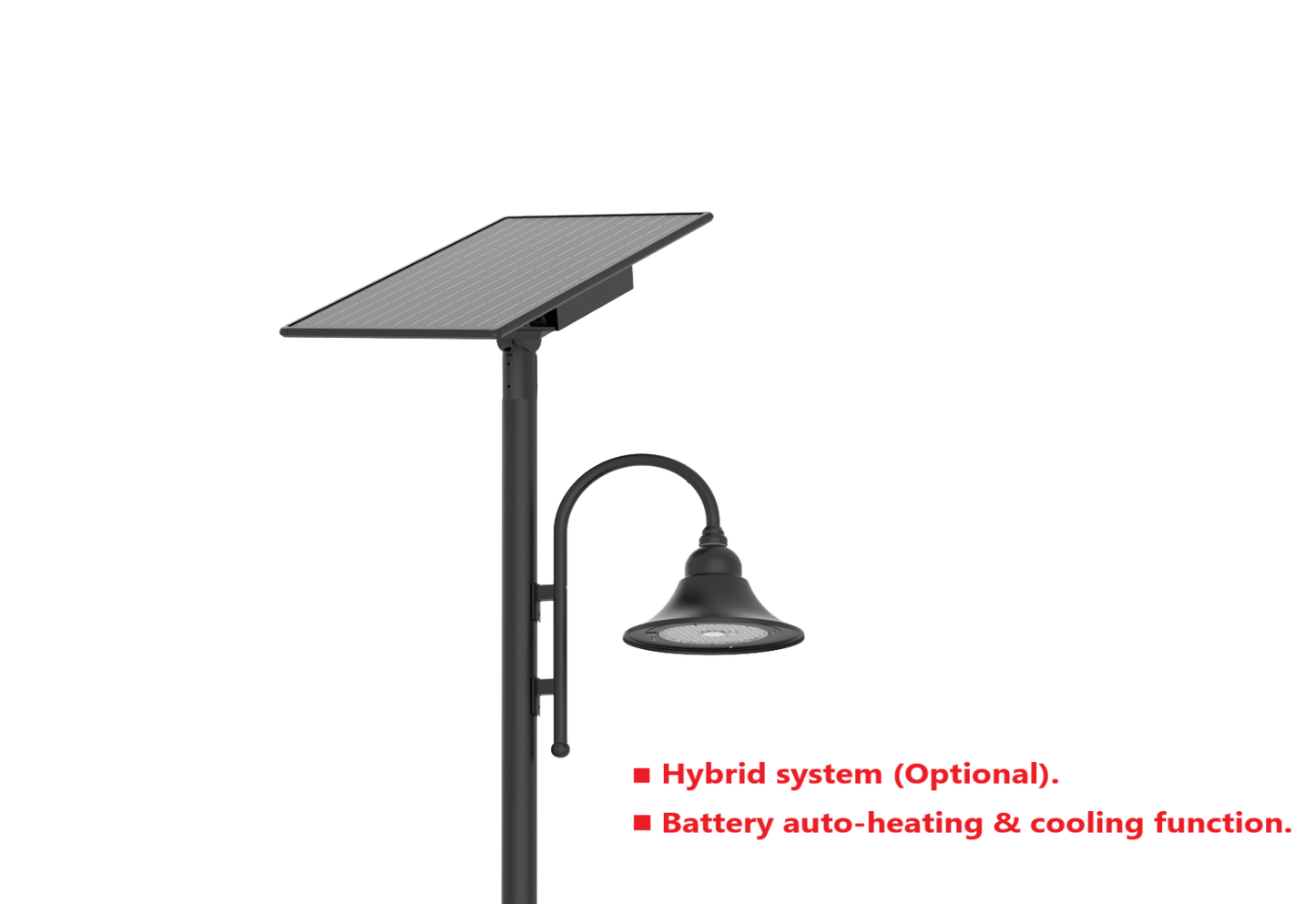

STQ-GLG-S 100W LED SOLAR STREET LIGHT

Split Type

LED SOLAR STREET LIGHT

INTRODUCTION:

 The STQ solar street light features a split design to meet various installation requirements.it uses automotive-grade(brand new) LiFeP04 batteries, which have longer battery life and can maintain stable performance even on continuous rainy days.High light efficiency and professional lens design make this a high-performance solar street light that is very suitable for use on roads and parking lots.

FEATURES:

• High brightness output:190LM/W.
• Cold weather batteries withstand temperatures as low as -20°C/-4°F(Optional).
• Hybrid system (Optional).
• l0T(Optional).
• Solar panel with up to 22% conversion efficiency and Key materials with UL certification.
• Flexible installation: Pole mounted, Wall mounted.
• Built in MPPT controller with motion microwave sensor.
• Remote control with multiple energy-saving modes.
• Adjustable solar panel angle allows maximum solar energy collection.
• Auto-heating function: Heating starts when the battery temperature at 0°C/32°F and stops at 6.5°C/43.7°F (only when charging).
• Auto-cooling function: Cooling starts when the battery temperature at 50°C/122°F and stops at 40°C/104°F.


SKU: STQ-PV-200W-24V-BK；STQ-BTB-19.2V-52AH-BK；STQ-GLG-S-BK;GLG-BA-BK-STQ

PRODUCT PARAMETERS

GLG

• Watt: 100 W

• Efficacy (Lm/w) : 180 LM/W .
• LUMENS（Lm) : 18000lm.
• GLG dimension:  Φ19.68ʺx11.89.
• Battery Capacity: 998.4 WH.
• Solar Panel Power: 200W.

• Solar panels outer box：38.62x4.61x51.46 inch
• Battery box component carton ：37.40x18.98x8.66 inch.
• Installation straight arm carton：11.14x6.81x3.66 inch.
• Solar panels gross weight: 43 lbs.
• Battery box gross weight：62.8 lbs
• Installation straight arm gross weight：4 lbs
• Light head gross weight：13.7 lbs
• Q'TY/CTN: 1pcs/1 ctn.

SPEC SHEET (click to download)

INSTALLATION (click to download)
