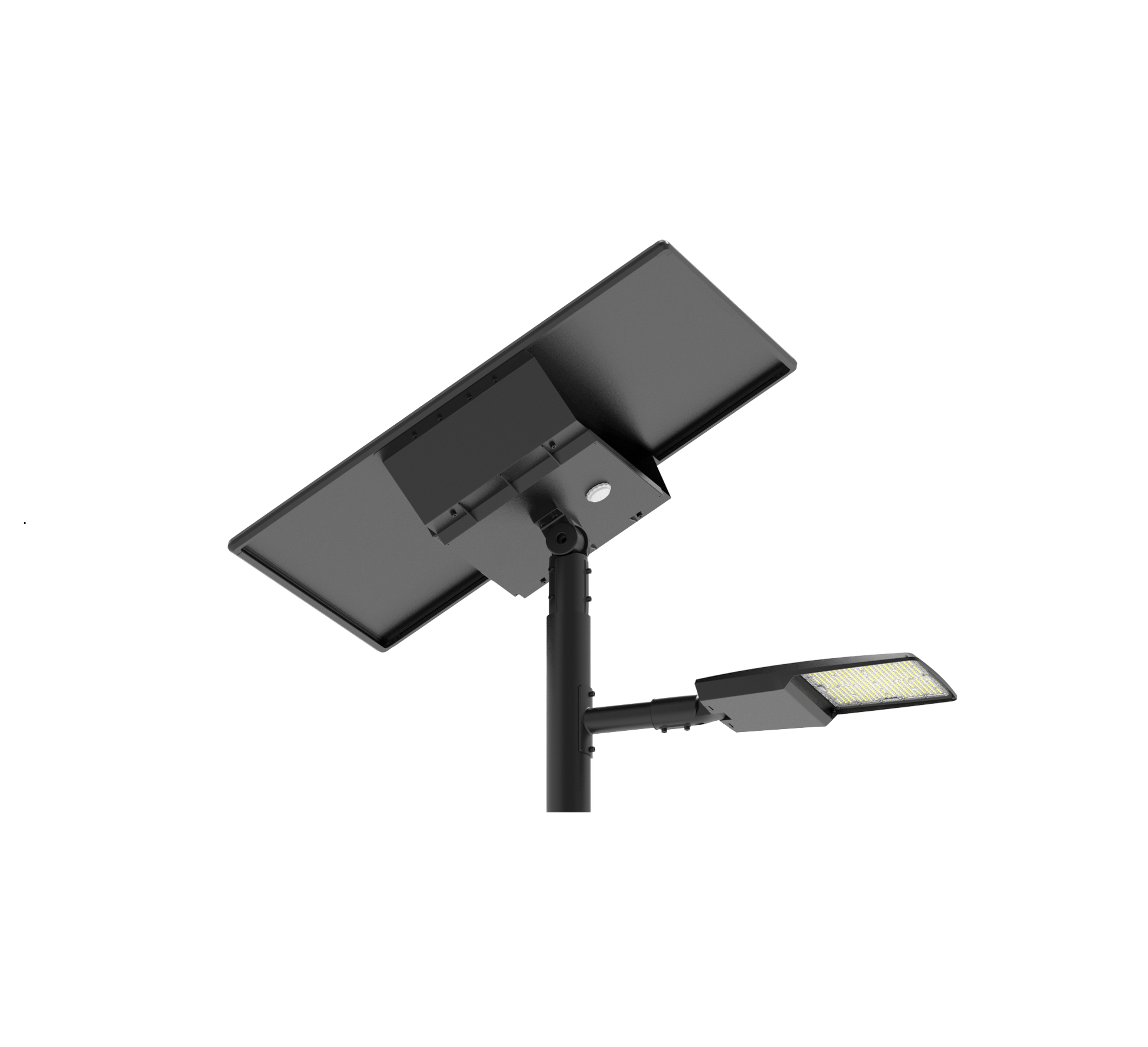

STQ-STP 100W LED SOLAR STREET LIGHT

Split Type

LED SOLAR STREET LIGHT

INTRODUCTION:

 The STQ solar street light features a split design to meet various installation requirements.it uses automotive-grade(brand new) LiFeP04 batteries, which have longer battery life and can maintain stable performance even on continuous rainy days.High light efficiency and professional lens design make this a high-performance solar street light that is very suitable for use on roads and parking lots.

FEATURES:

• High brightness output:190LM/W.
• Cold weather batteries withstand temperatures as low as -20°C/-4°F(Optional).
• Hybrid system (Optional).
• l0T(Optional).
• Solar panel with up to 22% conversion efficiency and Key materials with UL certification.
• Built in MPPT controller with motion microwave sensor.
• Remote control with multiple energy-saving modes.
• Adjustable solar panel angle allows maximum solar energy collection.
• Auto-heating function: Heating starts when the battery temperature at 0°C/32°F and stops at 6.5°C/43.7°F (only when charging).
• Auto-cooling function: Cooling starts when the battery temperature at 50°C/122°F and stops at 40°C/104°F.


SKU: STQ-PV-200W-24V-BK；STQ-BTB-19.2V-52AH-BK；STQ-STP-BK；STQ-SA-BK

PRODUCT PARAMETERS

STP

• Watt: 100 W
• Voltage: 36V DC.
• Efficacy (Lm/w) : 190 LM/W .
• LUMENS（Lm) : 23800lm.
• EPA（ft2 ）: 1.67.
• Battery Capacity: 998.4 WH.
• Solar Panel Power: 200 W.
• OPTIC TYPE : TYPE III.
• STP dimension: "22.05*12.60*3.39 inch

• Solar panels outer box：38.62*4.61*51.46 inch.
• Battery box component carton ：37.40*18.98*8.66 inch.
• Light head carton ：22.6*11.3*4.33 inch
• Mounting type: Slip Fitter.
• Solar panels gross weight: 21.4 lbs.
• Battery box gross weight: 35.1lbs.

• Light head gross weight: 13.7lbs.
• Q'TY/CTN: 1pcs/1 ctn.

SPEC SHEET (click to download)

INSTALLATION (click to download)
