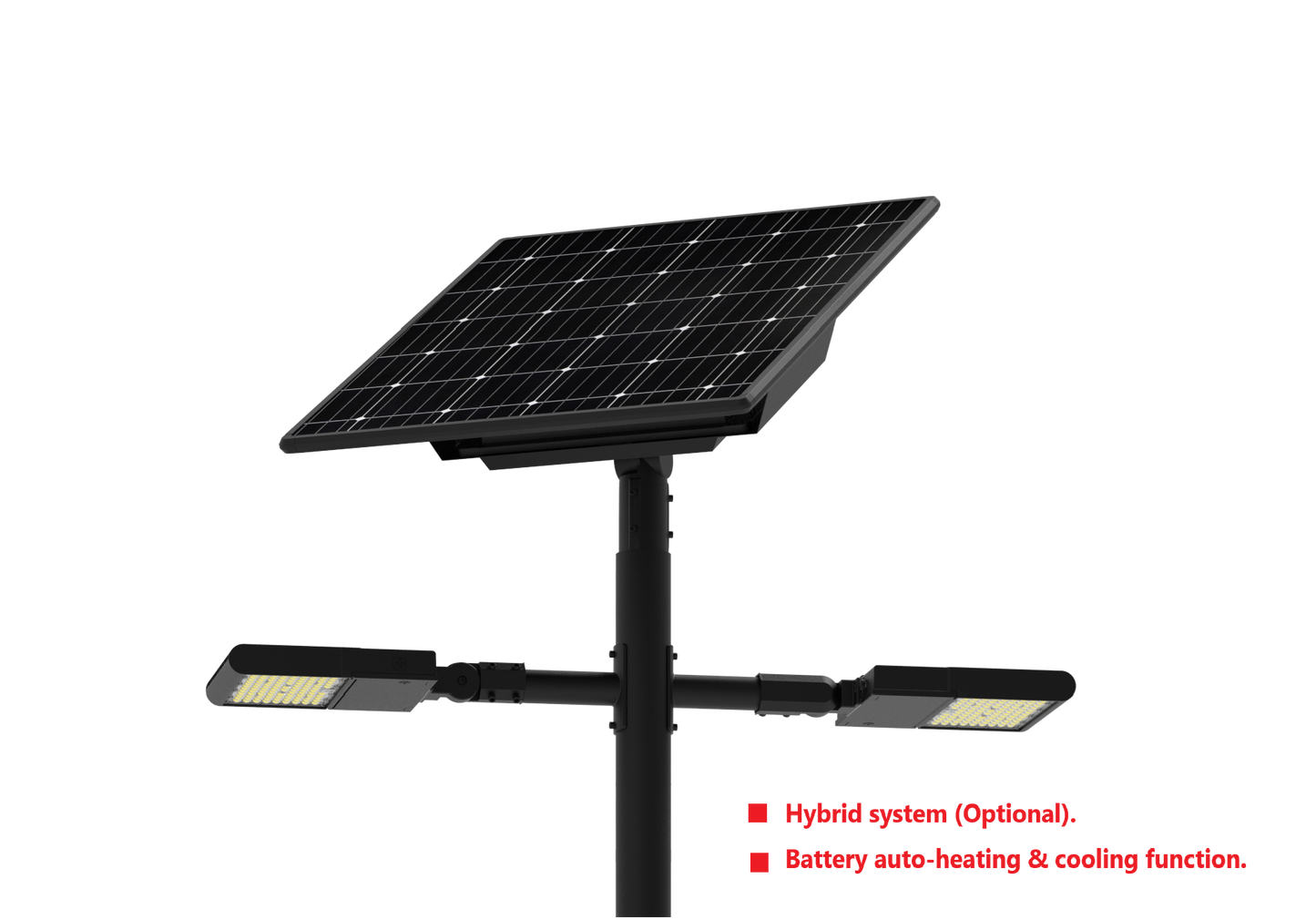

STQ-FLY-D 100W LED SOLAR STREET LIGHT

Split Type

LED SOLAR STREET LIGHT

INTRODUCTION:

 The STQ solar street light features a split design to meet various installatior rquirements.it uses automotive-grade(brand new) LiFeP04 batteries, which have longer battery life and can maintain stable performance even on continuous rainy days.High light effciency and professional lens design make this a high-performance solar street light that is very suitable for use on roads and parking lots.

FEATURES:

• High brightness output:190LM/W.
• Cold weather batteries withstand temperatures as low as -20°C/-4°F(Optional).
• Hybrid system (Optional).
• l0T(Optional).
• Solar panel with up to 22% conversion efficiency and Key materials with UL certification.
• Built in MPPT controller with motion microwave sensor.
• Remote control with multiple energy-saving modes.
• Adjustable solar panel angle allows maximum solar energy collection.
• Auto-heating function: Heating starts when the battery temperature at 0°C/32°F and stops at 6.5°C/43.7°F (only when charging).
• Auto-cooling function: Cooling starts when the battery temperature at 50°C/122°F and stops at 40°C/104°F.


SKU: STQ-PV-200W-24V-BK；STQ-BTB-19.2V-52AH-BK；STQ-FLY-D-BK;STQ-SA-BK

PRODUCT PARAMETERS

FLY

• Watt: 100 W
• Voltage: 36V DC.
• Efficacy (Lm/w) : 150 LM/W .
• LUMENS（Lm) : 21000lm.
• EPA（ft2 ）: 0.75.
• OPTIC TYPE : TYPE III.
• FLY dimension: 15x12.71x2.17 inch
• Battery Capacity: 998.4 WH.
• Solar Panel Power: 200W.

• Solar panels outer box：38.62*4.61*51.46 inch.
• Battery box component carton ：37.40*18.98*8.66 inch.
• Installation straight arm carton：11.14*6.81"*3.66 inch.
• Light head carton ：23.03*14.65*5.35 inch.
• Mounting type: Slip Fitter.
• Solar panels gross weight: 43 lbs.
• Battery box gross weight:47.4 lbs.
• Installation straight arm gross weight: 4 lbs.
• Light head gross weight: 13.7 lbs.
• Q'TY/CTN: 1pcs/1 ctn.

SPEC SHEET (click to download)

INSTALLATION (click to download)
