PRS(THREE SECTION) SOLAR COURTYARD LIGHT

INTRODUCTION :

The PRS solar light pole series adopts modular component design, which is easy to transport, and can be quickly installed, maintained, and the lamp head/electrical equipment can be replaced according to different needs.360-degree wrapping of high-efficiency solar panels with high conversion rate.There is no need to consider the impact of the installation angle on the charging capacity during installation.Vertically installed solar panels can achieve self-cleaning through natural wind or rain, saving labor maintenance costs.

FEATURES:

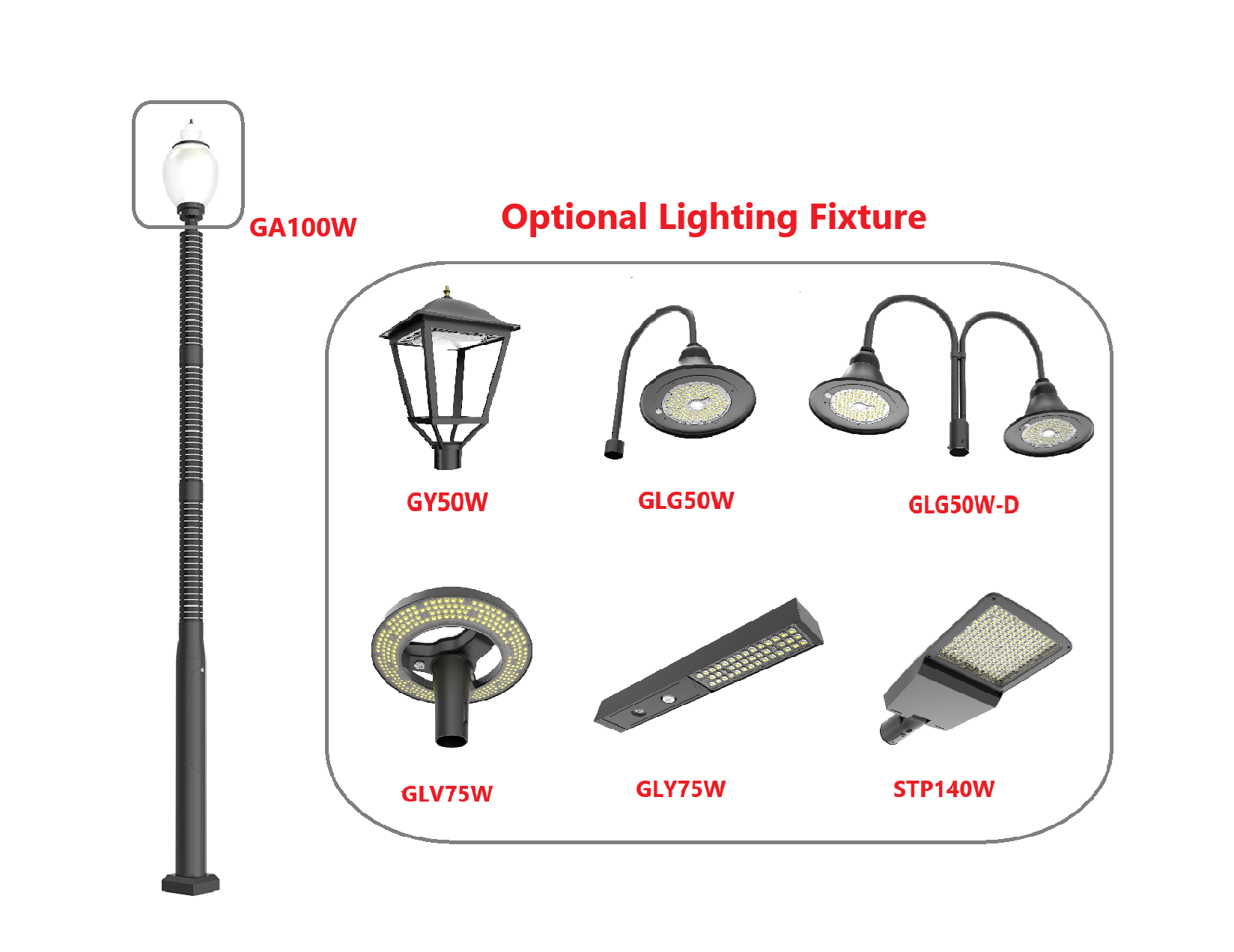

• PRS compatible lighting fixtures: GY, GLG, GA, GLV, FLL, STP, FLY, GLY..
• Hybrid power system (25W-150W Optional).
• Modular component design, quick and easy for assemble ,maintain and replacement.
• Vertically installed solar panels enable self-cleaning and maintenance.
• No need of wire, could be a energy station of low voltage and g grid interactive system for power application(optional).
• IOT (optional).
• MPPT controller.
• Solar panels with up to 22% conversion efficiency.
• Key materials with ULcertification.
• LiFeP04 battery ,Utilizing automotive-grade LiFeP04 batteries which have a longer lifespan and greater capacity.
• Access door design: easy to maintain the battery compartment.
• Solar panel (SCR).

SKU: PRS-BP-0.72*6.77FT-BK,PRS-PV-50W-22V-BK,PRS-BTB-12.8V-52AH-BK

PRODUCT PARAMETERS

• Number of SCR sections (Optional): Three Section

• SCR-01 voltage: 22V.
• Power: 100W.
• Operating Voltage：12.8V.
• Battery Capacity: 666 WH.
• Charging Time: 4-10 HR.
• CCT :3000K/4000K/5000K/5700K (Selectable).
• Auto-heating function (optional):Heating starts when the battery temperature at 0°C/32°F and stops at 6.5°C/43.7°F (only when charing).
• Operating Temperature :-20°C/-4°F to 50°C/122°F.
• Charging Temperature : 0°C/32°F to 50°C/122°F.

GA

•  Watt : 50-100 W.

• Voltage: 36 VDC.
• Efficacy (Lm/w) : 135 LM/W .
• LUMENS（Lm) : 15000 LM.
• EPA（ft² ）: 3.12 .
• OPTIC TYPE : 80×120°.
• GA dimension:  Φ17.32ʺx34.57ʺ

GLG

• Watt: 25-50 W
• Voltage: 36V DC.
• Efficacy (Lm/w) : 180 LM/W .
• LUMENS（Lm) : 9000lm.
• EPA（ft2²）: 2.19.
• OPTIC TYPE : TYPE III.
• GLG dimension:  Φ19.68ʺx11.89

GY

• GY Watt : 15-50 W.

• Voltage: 36 VDC.
• Efficacy (Lm/w) : 145 LM/W .
• LUMENS（Lm) : 7250 lm.
• EPA（ft² ）: 1.78.
• OPTIC TYPE : 120×120°.
• GY dimension: 15.75x15.75x27.56 inch.

GLV

• GLV Watt : 15-75 W.

• Voltage: 30V DC.
• Efficacy (Lm/w) : 180 LM/W .
• LUMENS（Lm) : 13500 lm.
• EPA（ft² ）: 1.62.
• OPTIC TYPE : 140×140°.
• GY dimension:  Φ18.9ʺx9.61".

FLY

• FLY Watt : 50-140 W.

• Voltage: 36V DC.
• Efficacy (Lm/w) : 150 LM/W .
• LUMENS（Lm) : 21000 lm.
• EPA（ft² ）: 0.75.
• OPTIC TYPE : TYPE III.
• FLY dimension: 15x12.71x2.17inch.

STP

• STP Watt : 50-140 W.

• Voltage: 36V DC.
• Efficacy (Lm/w) : 190 LM/W.
• LUMENS（Lm) : 23800 lm.
• EPA（ft² ）: 1.67.
• OPTIC TYPE : TYPE III.
• STP dimension: 22.05x12.60x3.39 inch.
