PRS(ONE SECTION) SOLAR COURTYARD LIGHT

INTRODUCTION :

The PRS solar light pole series adopts modular component design, which is easy to transport, and can be quickly installed, maintained, and the lamp head/electrical equipment can be replaced according to different needs.360-degree wrapping of high-efficiency solar panels with high conversion rate. There is no need to consider the impact of the installation angle on the charging capacity during installation.Vertically installed solar panels can achieve self-cleaning through natural wind or rain, saving labor maintenance costs.

FEATURES:

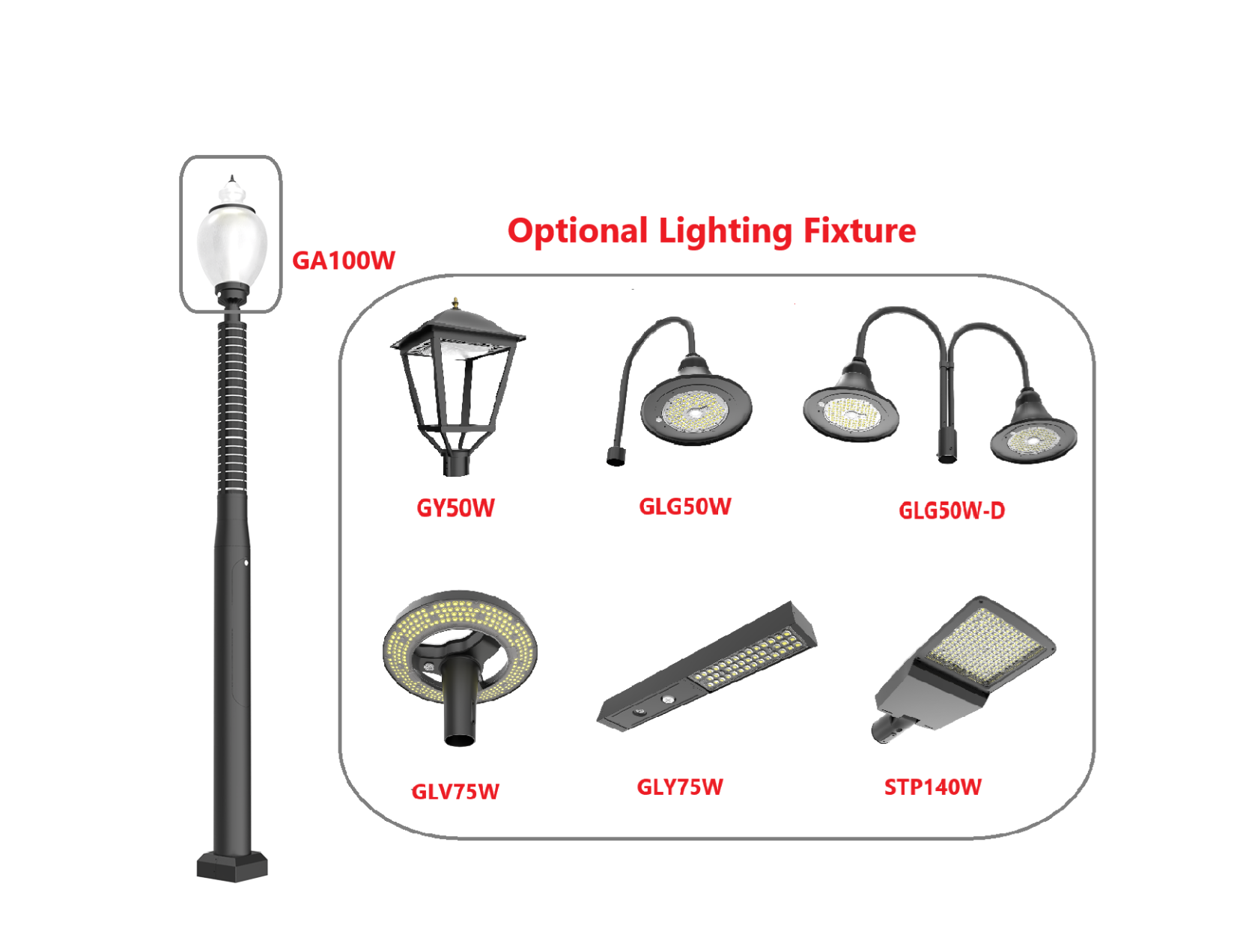

• PRS compatible lighting fixtures: GY, GLG, GA, GLV, FLL, STP, FLY, GLY (Optional).
• Hybrid power system (25W-150W Optional).
• Modular component design, quick and easy for assemble ,maintain and replacement.
• Vertically installed solar panels enable self-cleaning and maintenance.
• No need of wire, could be a energy station of low voltage and g grid interactive system for power application(optional).
• IOT (optional).
• MPPT controller.
• Solar panels with up to 22% conversion efficiency.
• Key materials with ULcertification.
• LiFeP04 battery ,Utilizing automotive-grade LiFeP04 batteries which have a longer lifespan and greater capacity.
• Access door design: easy to maintain the battery compartment.
• Solar panel (SCR).

SKU: PRS-BP-0.72*6.77FT-BK,PRS-PV-50W-22V-BK,PRS-BTB-12.8V-30AH-BK

PRODUCT PARAMETERS

• Number of SCR sections (Optional): One Section

• SCR-01 voltage: 22V.
• Power: 100W.
• Operating Voltage：12.8V.
• Battery Capacity: 384 WH
• Charging Time: 4-10 HR.

• Auto-heating function (optional):Heating starts when the battery temperature at 0°C/32°F and stops at 6.5°C/43.7°F (only when charing).
• Operating Temperature :-20°C/-4°F to 50°C/122°F.
• Charging Temperature : 0°C/32°F to 50°C/122°F.

GA

•  Watt : 50-100 W.

• Voltage: 36V DC.
• Efficacy (Lm/w) : 135 LM/W .
• LUMENS（Lm) : 15000 LM.
• EPA（ft2 ）: 3.12 .
• OPTIC TYPE : 80×120°.
• GA dimension:  Φ17.32ʺx34.57ʺ

GLG

• Watt: 25-50 W
• Voltage: 36V DC.
• Efficacy (Lm/w) : 180 LM/W .
• LUMENS（Lm) : 9000lm.
• EPA（ft² ）: 2.19.
• OPTIC TYPE : TYPE III.
• GLG dimension:  Φ19.68ʺx11.89

GY

• GY Watt : 15-50 W.

• Voltage: 36V DC.
• Efficacy (Lm/w) : 145 LM/W .
• LUMENS（Lm) : 7250 lm.
• EPA（ft² ）: 1.78.
• OPTIC TYPE : 120×120°.
• GY dimension: 15.75x15.75x27.56 inch.

GLV

• GLV Watt : 15-75 W.

• Voltage: 30V DC.
• Efficacy (Lm/w) : 180 LM/W .
• LUMENS（Lm) : 13500 lm.
• EPA（ft² ）: 1.62.
• OPTIC TYPE : 140×140°.
• GY dimension:  Φ18.9ʺx9.61".

FLY

• FLY Watt : 50-140 W.

• Voltage: 36V DC.
• Efficacy (Lm/w) : 150 LM/W .
• LUMENS（Lm) : 21000 lm.
• EPA（ft² ）: 0.75.
• OPTIC TYPE : TYPE III.
• FLY dimension: 15x12.71x2.17 inch.

STP

• STP Watt : 50-140 W.

• Voltage: 36V DC.
• Efficacy (Lm/w) : 190 LM/W.
• LUMENS（Lm) : 23800 lm.
• EPA（ft² ）: 1.67.
• OPTIC TYPE : TYPE III.
• STP dimension: 22.05x12.60x3.39 inch.
