GA Series HEAT SINK
GA Series HEAT SINK
SKU:GA-E39-HS-BK/GA-E26-HS-BK
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Unit price
/
per
Out of stock
Couldn't load pickup availability
INTRODUCTION:

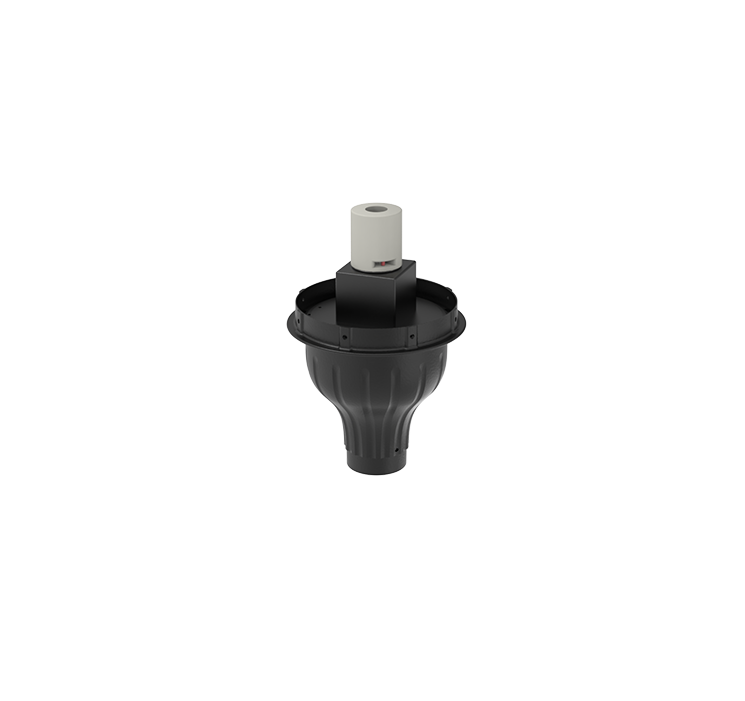

GA Series Heat Sink Engineered for extreme durability, the GA-series heatsink combines IP68-rated silicone gasket sealing, wind-optimized low EPA geometry (0.3 drag coefficient), and high-thermal-conductivity ADC12 die-cast aluminum with triple-layer RAL-certified powder coating - delivering reliable thermal management in harsh outdoor environments.
FEATURES:
- 120-277VAC 50/60Hz.
- Operating Temperature: -40°C to 40°C.
- ADC12 diecast Aluminum Alloy, outdoor powder coating.
- Low effective projected area (EPA) and low wind resistance.
- Waterproofsealing components use weather-resistant silicone gaskets.
- Warranty: 5-Year.
SKU: GA-E39-HS-BK/GA-E26-HS-BK
PRODUCT PARAMETERS
E26 Heat Sink：
- Current Max：1.2A.
- Dimensions:13.66×9.53×9.53 inch.
- Gross Weight: 8.8 lbs.
- Master Carton：13.78"×10.24"×10.24".
- Qty / CTN: 1.
- Cubic:0.83ft³
E39 Heat Sink:
- Current Max：1.8A.
- Dimensions:13.66×9.53×9.53 inch.
- Gross Weight: 8.8 lbs.
- Master Carton：13.78"×10.24"×10.24".
- Qty / CTN: 1.
- Cubic:0.83ft³.
