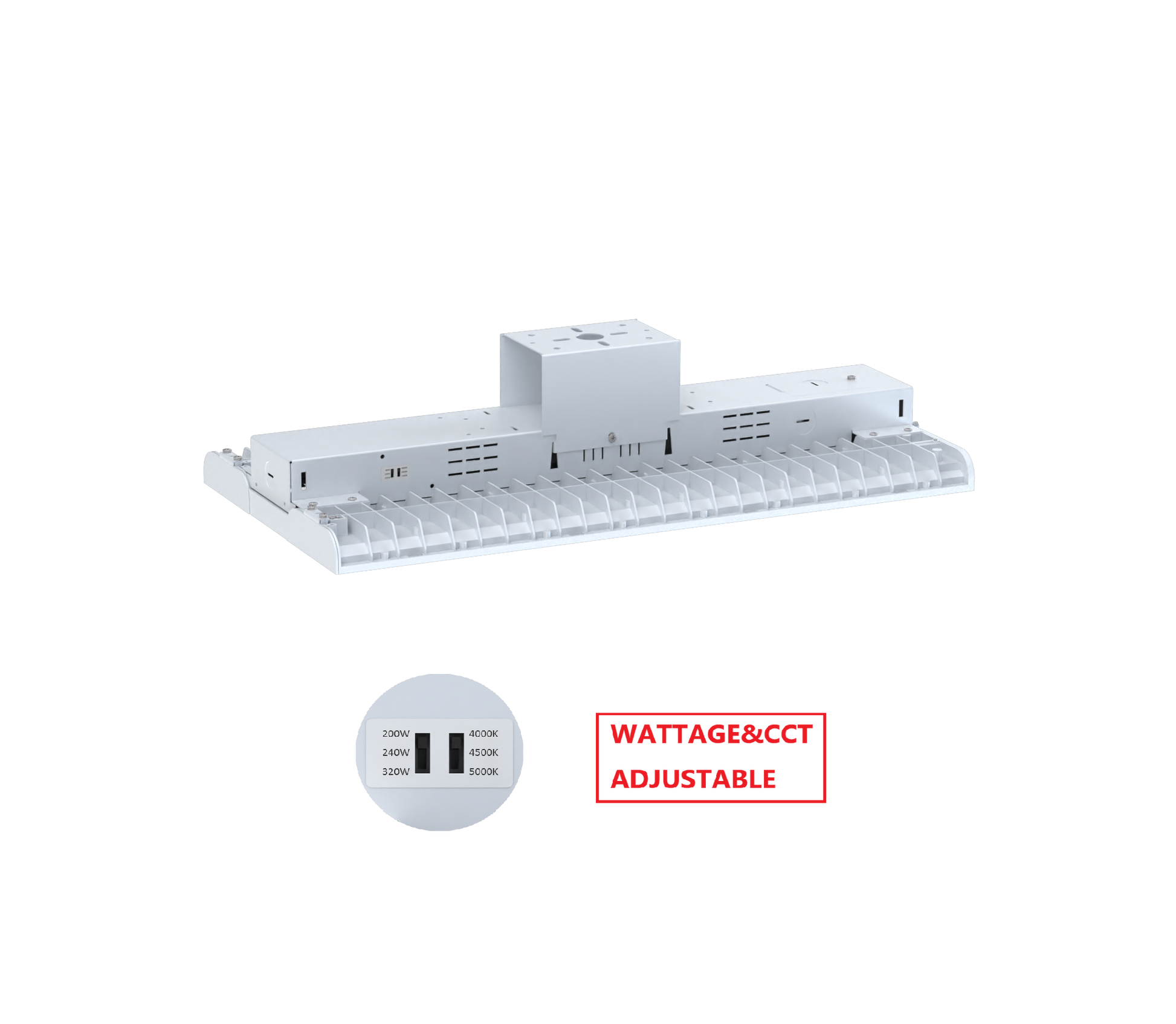

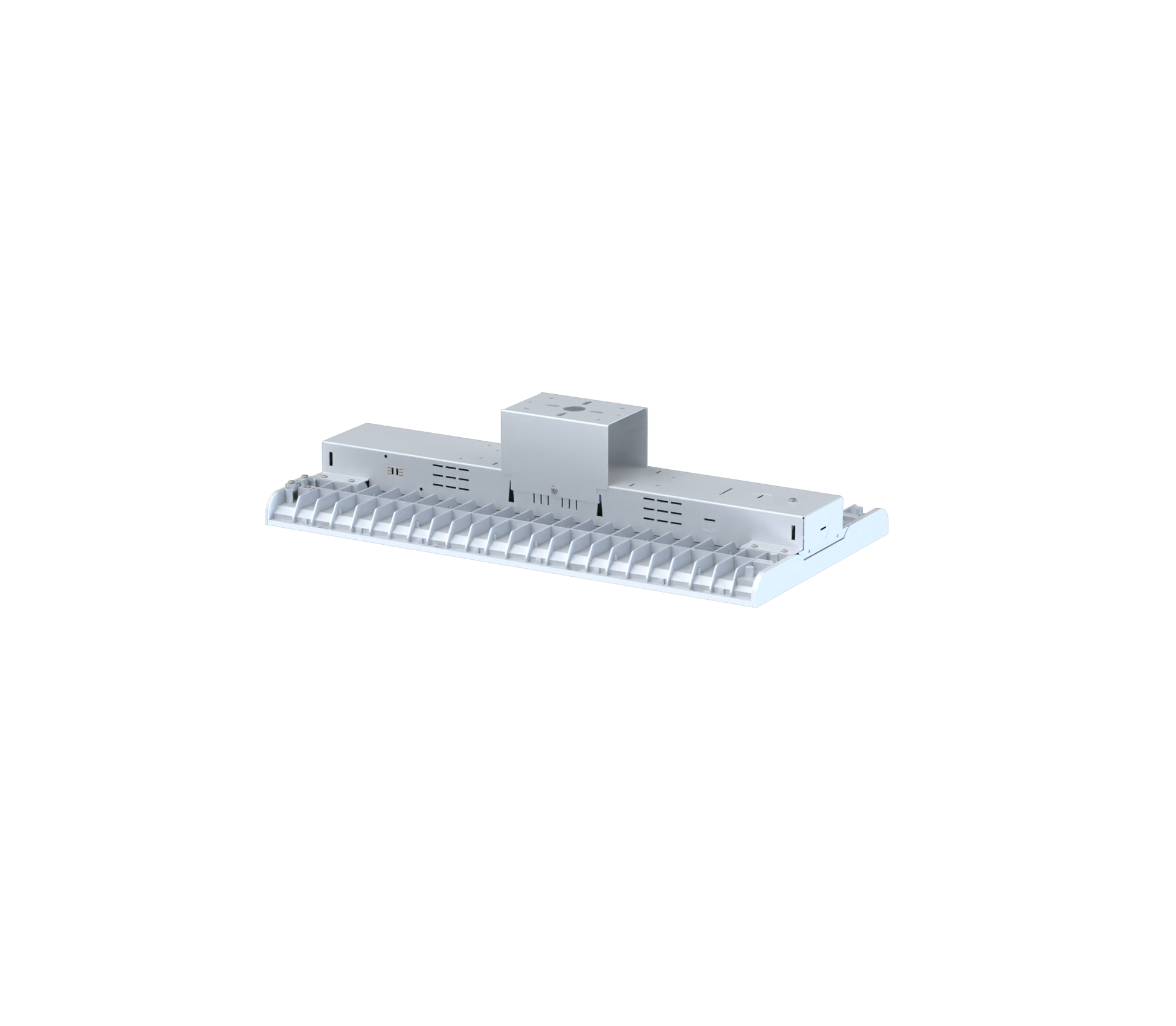

HBW 320W LED LINEAR HIGH BAY LIGHT WITH CCT&WATTAGE ADJUSTABLE

320W CCT&WATTAGE ADJUSTABLE LED LINEAR HIGH BAY LIGHT

INTRODUCTION :

Linear High Bay Light HBW series LED shell adopts aluminum die-casting shell, excellent heat dissipation performance, adjustable power and color temperature, can easily and quickly replace PC pieces without tools, and is suitable for -40°C~+40°C dry environment. It is UL, CUL, DLC, FCC certified.

FEATURES:

• Optional Sensor ,Transformers, Emergency LED Driver, Chains


SKU:  HBW-200-320-DCCT-M-SM-WH-110

PRODUCT PARAMETERS

• Input: 120-277VAC
• Efficacy: 140 LM/W
• LED: Lumileds, CRI80
• CCT: 4000K/4500K/5000K Selectable
• Power: 200/240/320W (Selectable)
• Lumen: 28000/33600/44800 lm
• Dimmable: 0-10V/PWM

• Optic type：90°/110°/60*110°
• Operating Temperature: -40°C to 40°C
• PF: >0.9
• THD: <20%
• Warranty: 5Years

• Mounting: Surface Mount

• Dimensions: 21.57*11.2*2.52 inch
• Master Carton: 22.56*11.61*3.43 inch
• Gross Weight：7.9 lbs
• Q’TY/CTN：1 pcs / 1 ctn

    SPEC SHEET (click to download)

    INSTALLATION (click to download)
