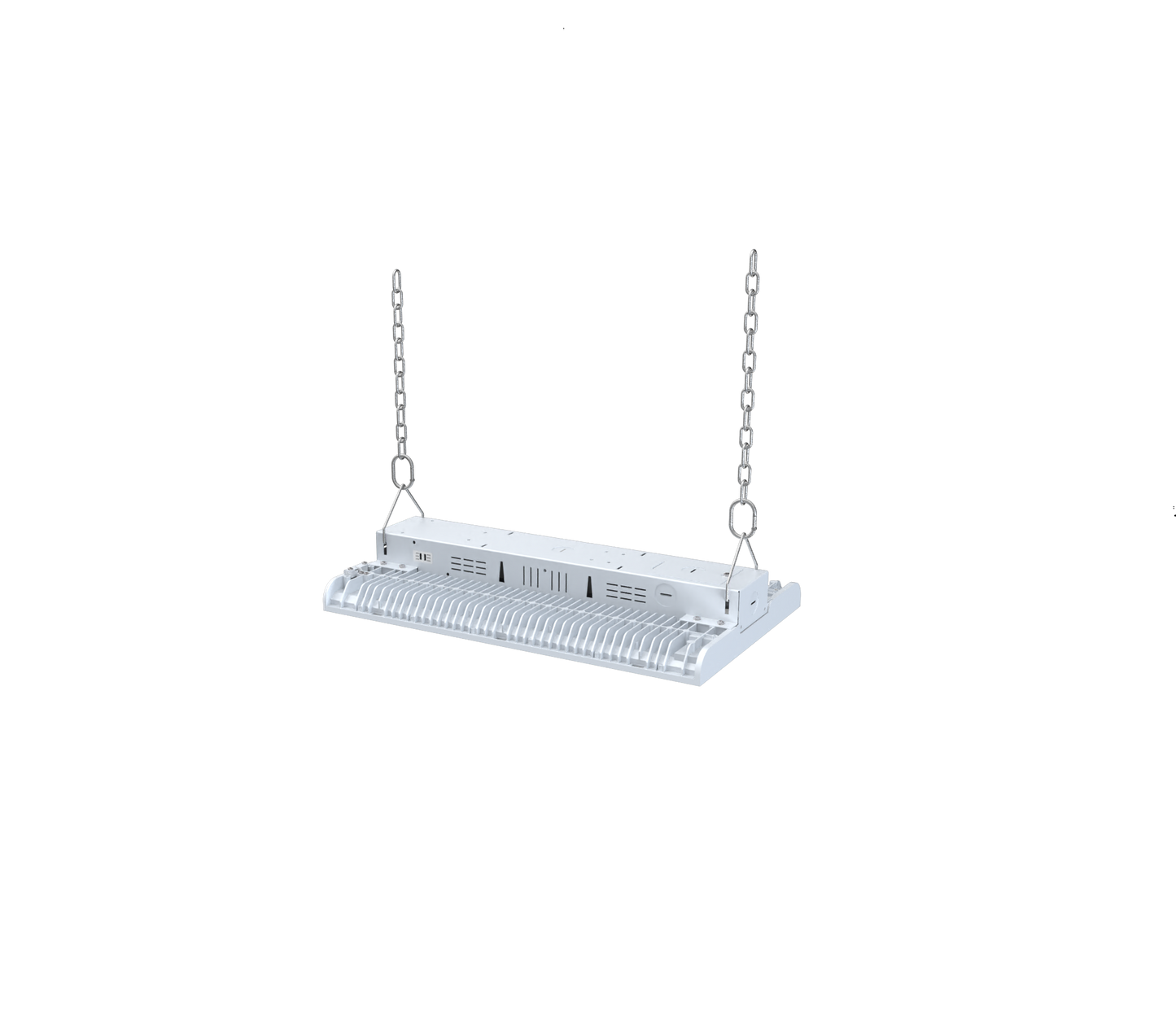

HBW 155W LED LINEAR HIGH BAY LIGHT WITH CCT&WATTAGE ADJUSTABLE

155W CCT&WATTAGE ADJUSTABLE LED LINEAR HIGH BAY LIGHT

INTRODUCTION :

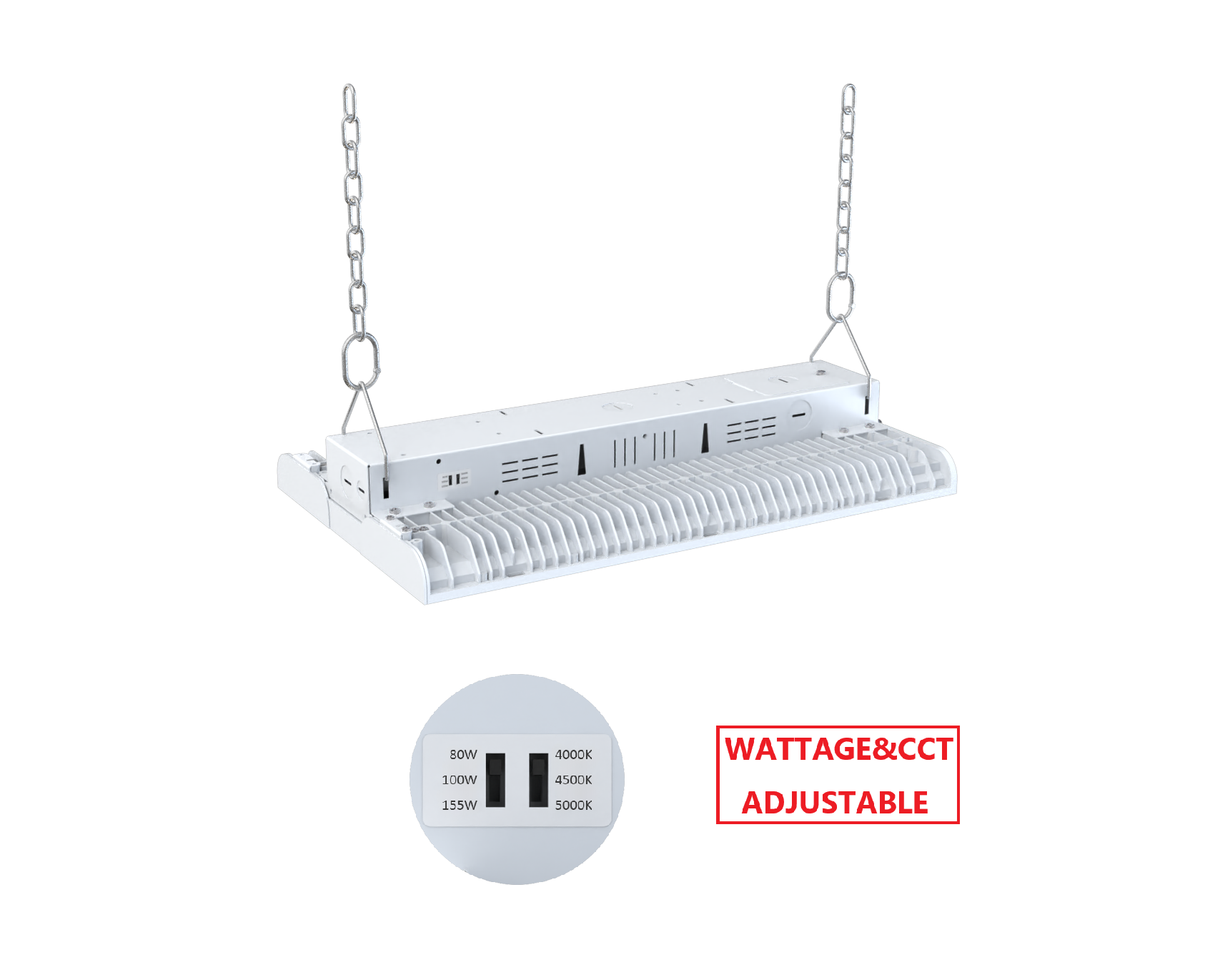

Linear High Bay Light HBW series LED shell adopts aluminum die-casting shell, excellent heat dissipation performance, adjustable power and color temperature, can easily and quickly replace PC pieces without tools, and is suitable for -40°C~+40°C dry environment. It is UL, CUL, DLC, FCC certified.

FEATURES:

• Optional Sensor ,Transformers, Emergency LED Driver, Chains


SKU:  HBW-80-155-DCCT-M-CM-WH-110

PRODUCT PARAMETERS

• Input: 120-277VAC
• Efficacy: 140 LM/W
• LED: Lumileds,CRI80
• CCT: 4000K/4500K/5000K Selectable
• Power: 80/100/155W (Selectable)
• Lumen:11200/14000/21700 lm
• Dimmable: 0-10V/PWM

• Optic type：90°/110°/50*105°
• Operating Temperature: -40°C to 40°C
• PF: >0.9
• THD: <20%
• Warranty: 5Years

• Mounting: Chain Mount
• Dimensions: 16.3*10.4*2.52 inch
• Master Carton: 16.93*10.63*3.43inch
• Gross Weight：6.9 lbs
• Q’TY/CTN：1 pcs / 1 ctn

    SPEC SHEET (click to download)

   INSTALLATION (click to download)
