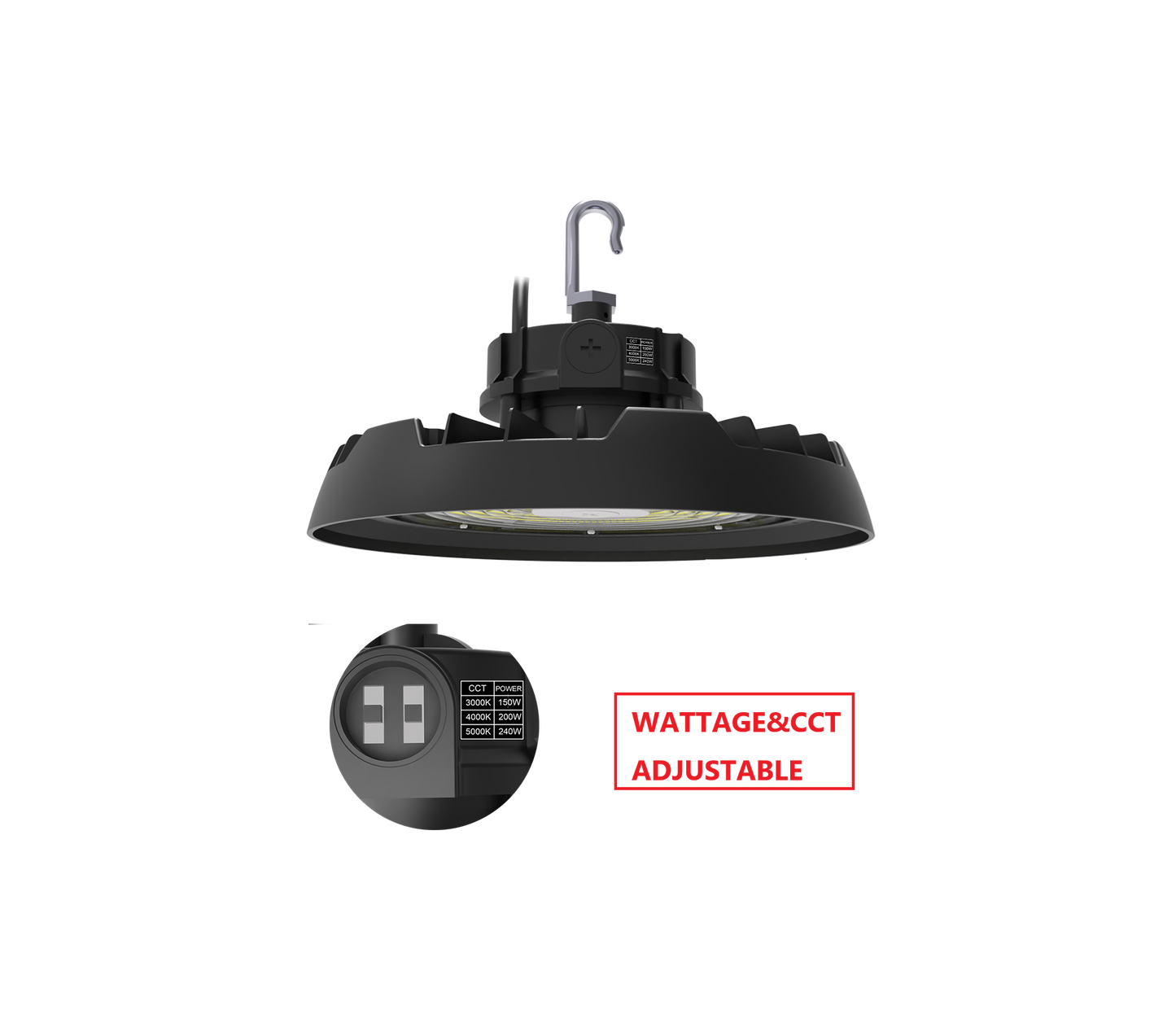

HBV240W LED UFO HIGH BAY LIGHT WITH CCT&WATTAGE ADJUSTABLE

240W CCT&WATTAGE ADJUSTABLE LED HIGH BAY LIGHT

INTRODUCTION :

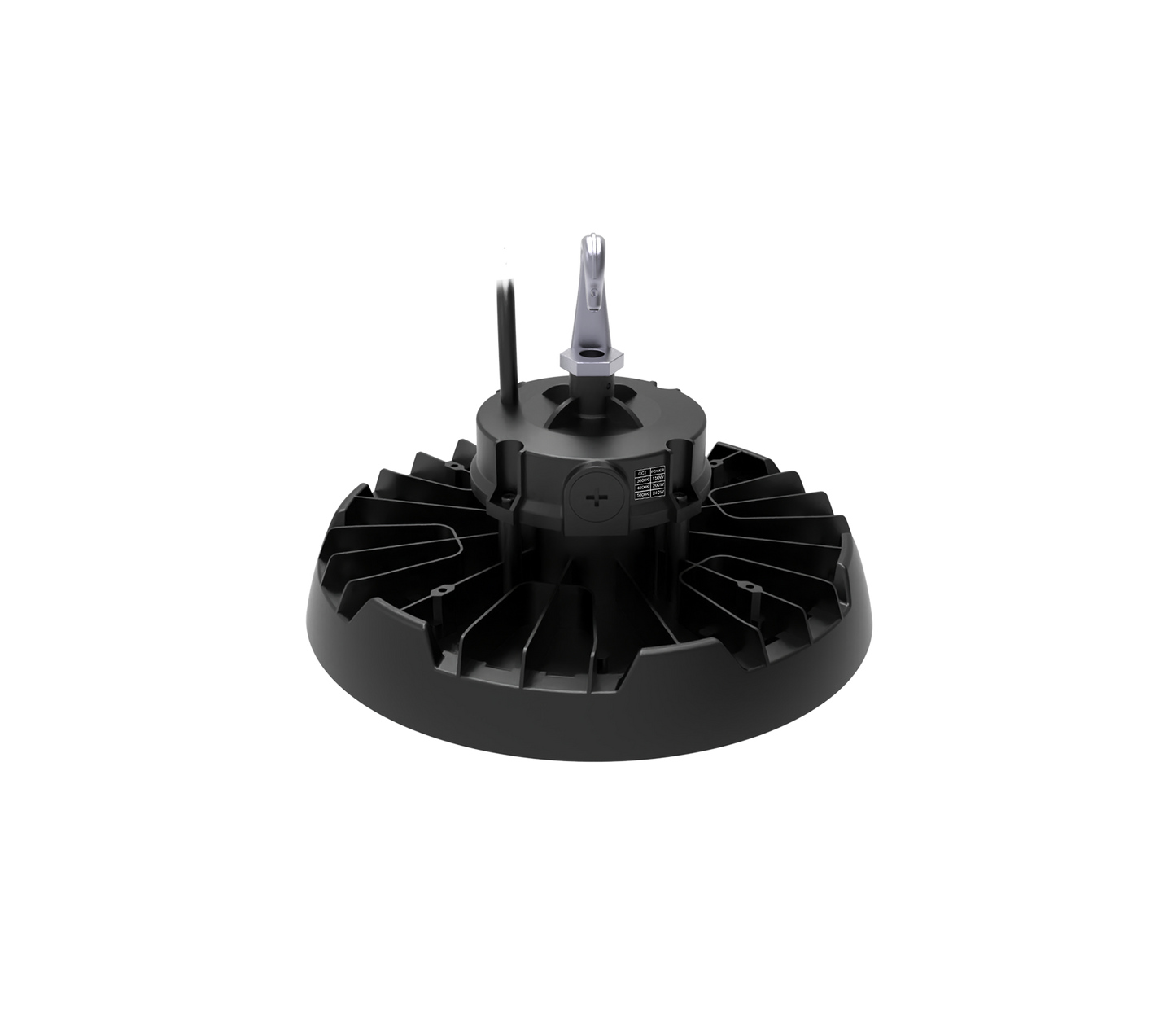

HBV series LED UFO High Light  features a die-cast aluminum housing for superior heat dissipation. It is equipped with high-transmittance optical lenses and offers adjustable power settings. Designed for ambient temperatures up to 40°C, it incorporates an IP65-rated waterproof structure.The series is certified by UL/CUL/DLC and complies with FCC and ICES standards. Which suitable for wet locations.

FEATURES:

• Optional motion sensor,PC reflector


SKU:  HBV-150-240-DCCT-M-HK-BK-90

PRODUCT PARAMETERS

• Input: 120-277VAC
• Efficacy: 140LM/W
• LED: Lumileds, CRI 80
• CCT: 3000K/4000K/5000K Selectable
• Power: 150/200/240W (Selectable)
• Lumen: 21000/28000/33600 lm
• Dimmable: 0-10V/PWM

• Operating Temperature: -40°C to 40°C
• PF: >0.9
• THD: <20%
• Warranty: 5Years

• Dimensions: 11.34Dia x 5H (without ring, 7.13 with ring) inch
• Master Carton: 12.76*12.76*6.14 inch
• Gross Weight：6.8 lbs
• Q’TY/CTN：1 pcs / 1 ctn

     SPEC SHEET (click to download)

    INSTALLATION (click to download)
