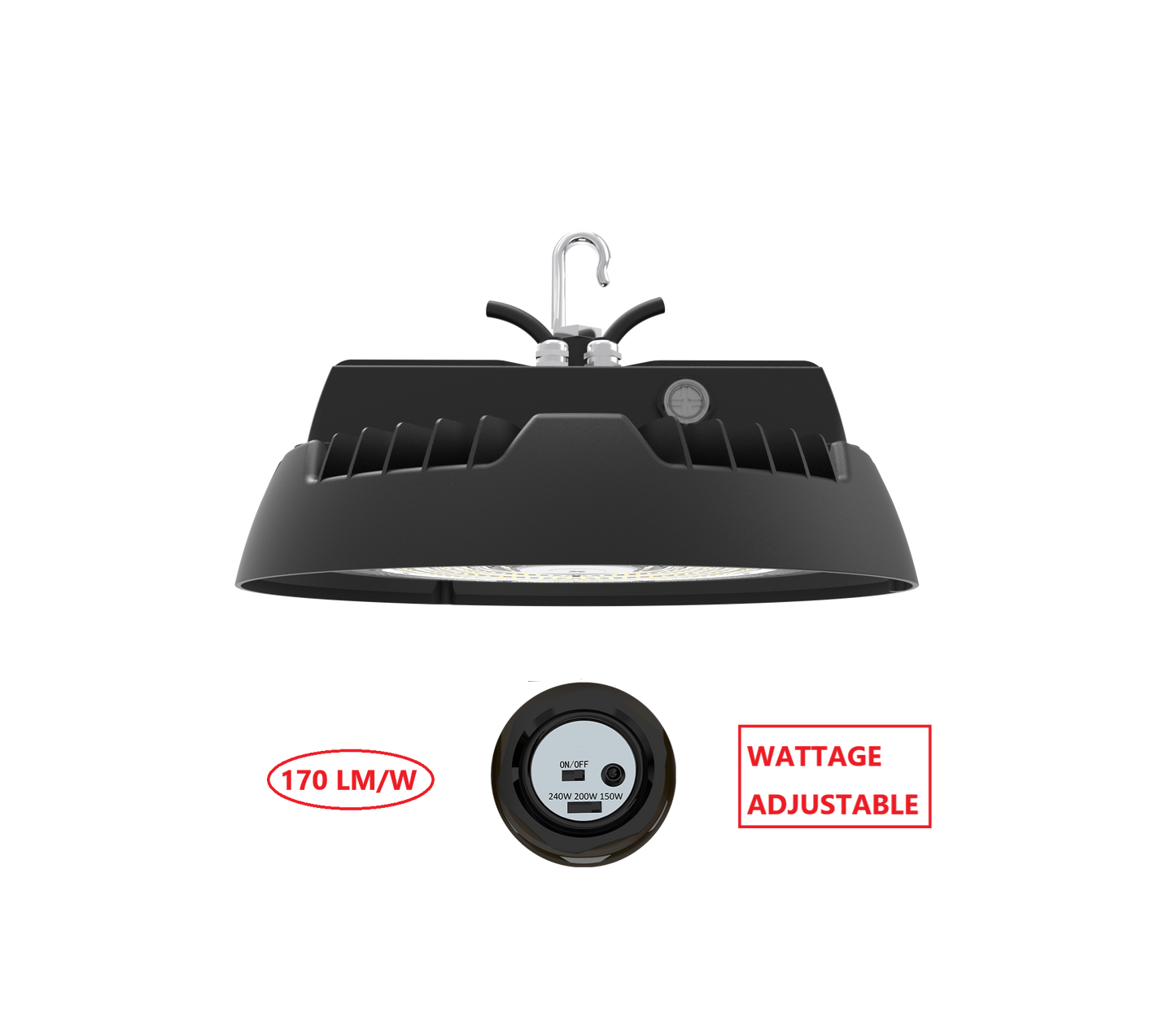

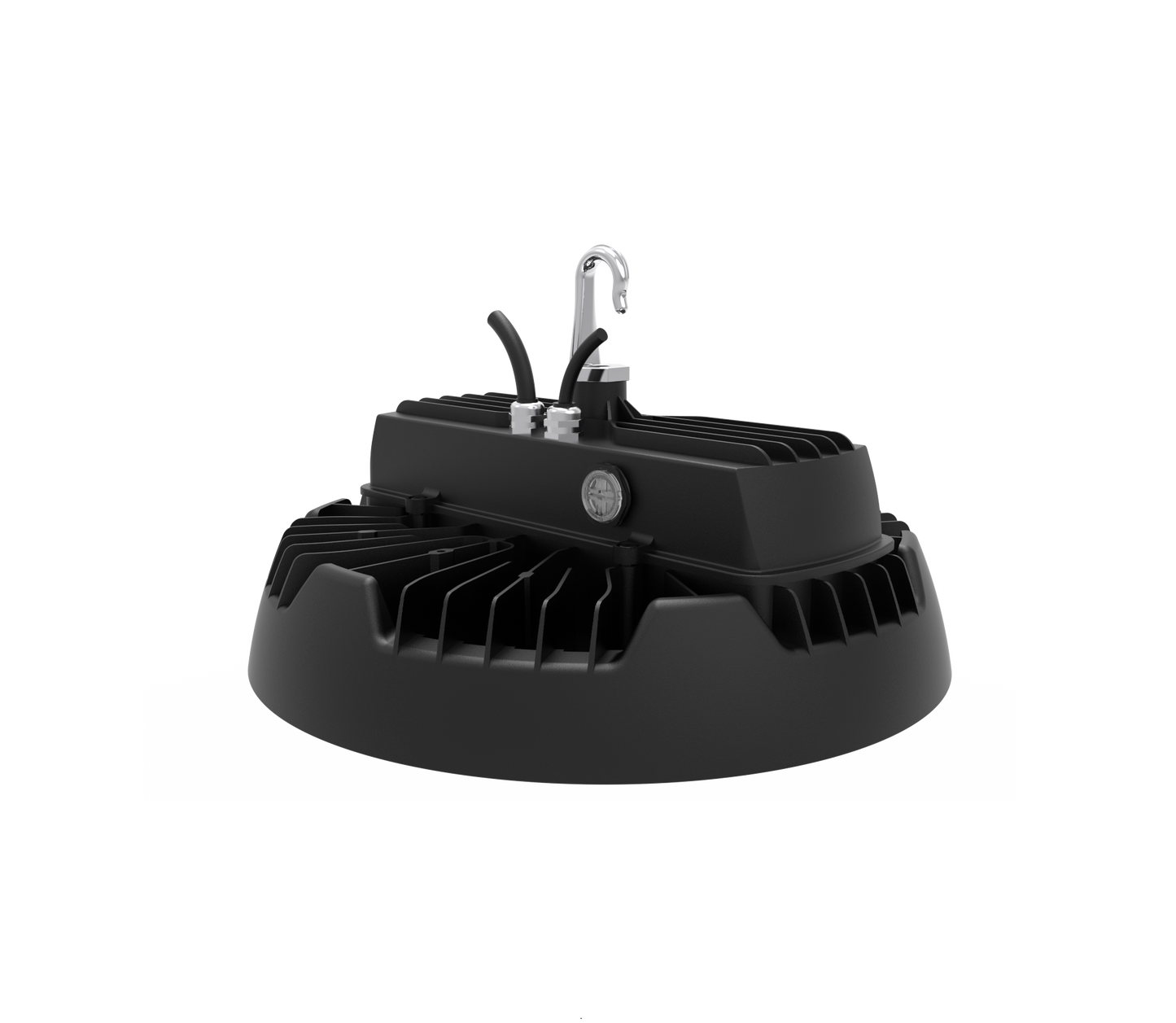

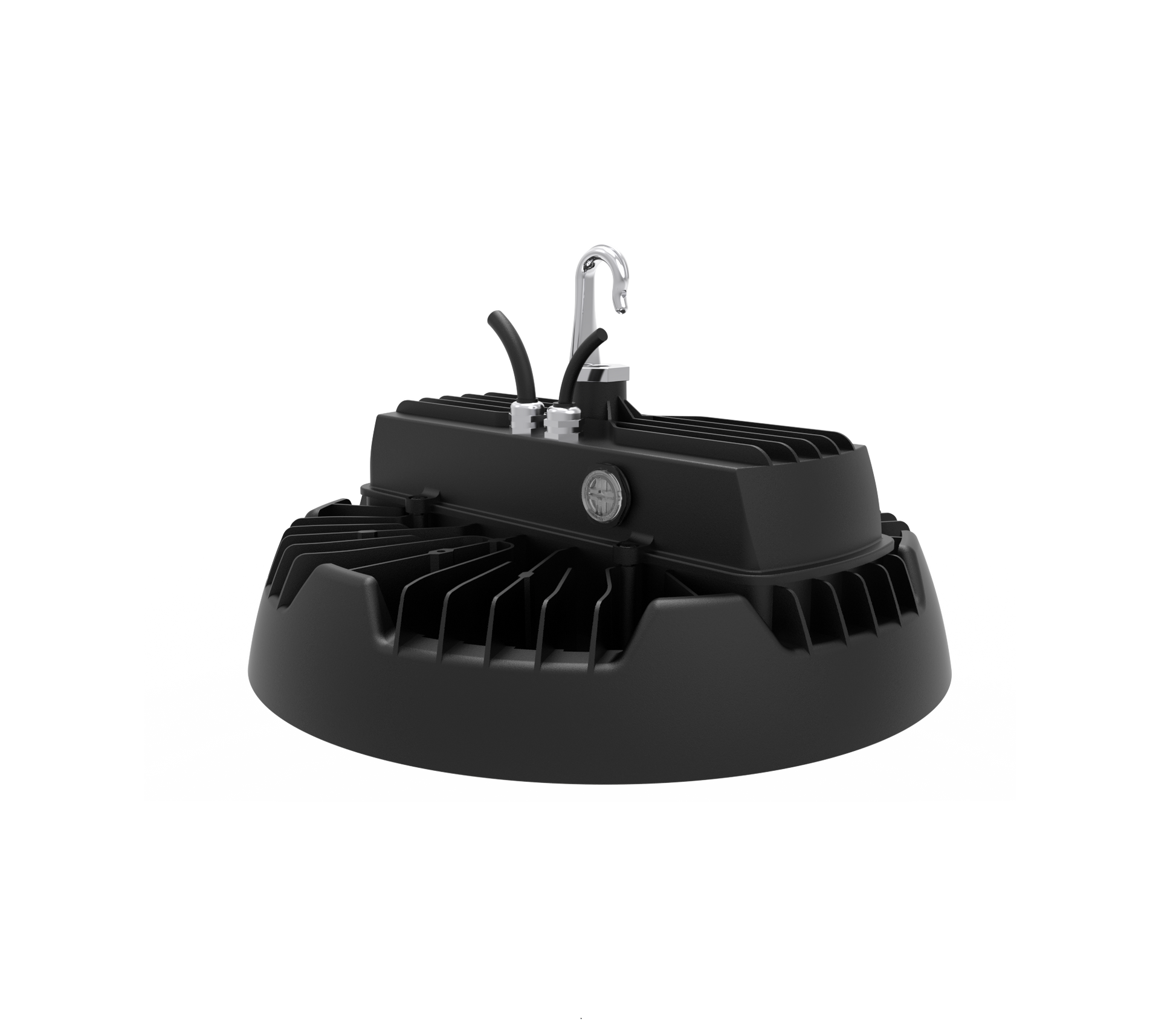

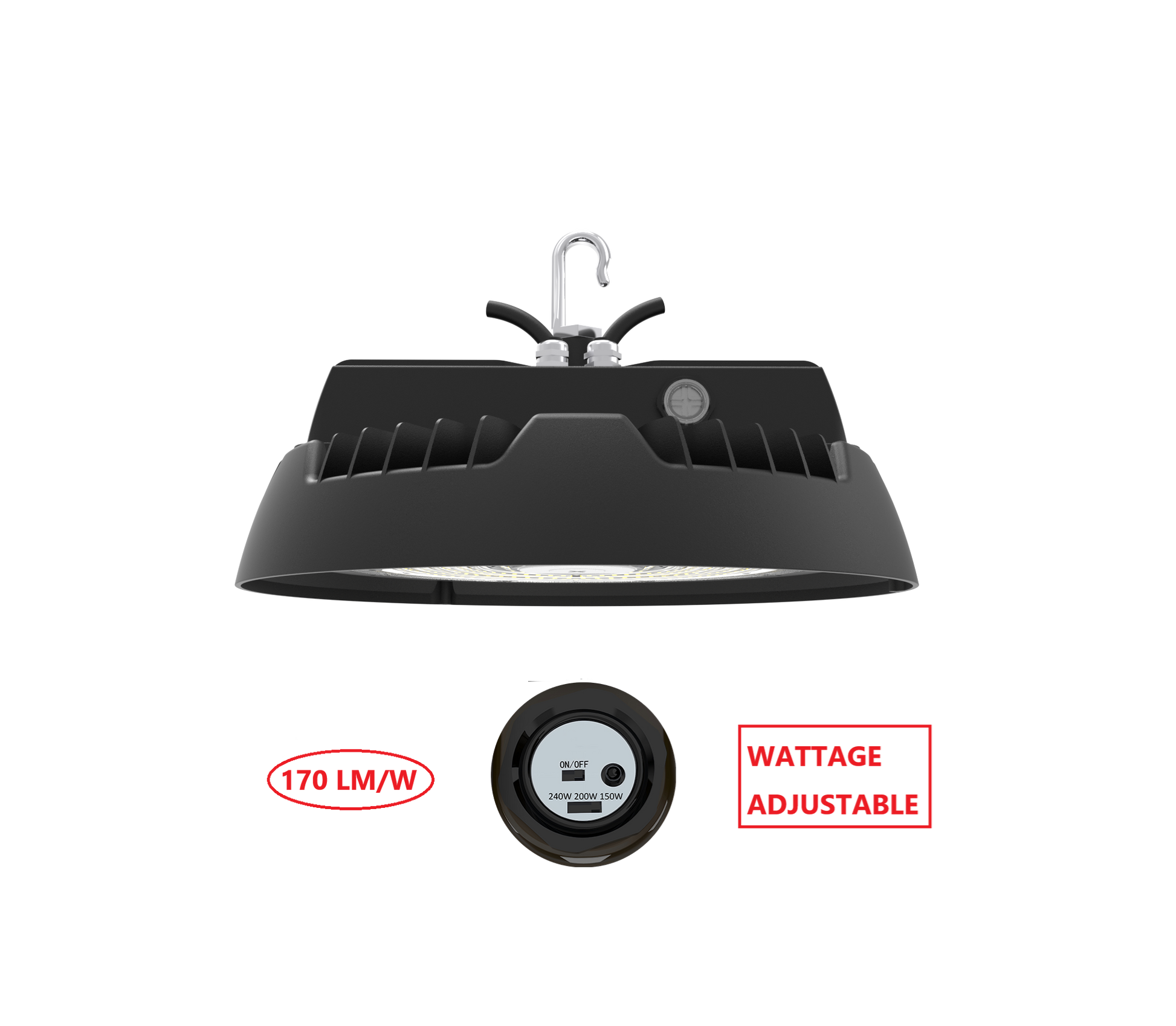

HBT240W LED UFO HIGH BAY LIGHT WITH WATTAGE ADJUSTABLE

240W  WATTAGE ADJUSTABLE LED HIGH BAY LIGHT

INTRODUCTION :

HBT series LED UFO High Light features a die-cast aluminum housing for superior heat dissipation. It is equipped with high-transmittance optical lenses and offers adjustable power settings. Designed for ambient temperatures up to 50°C, it incorporates an IP65-rated waterproof structure.The series is certified by UL/CUL/DLC and complies with FCC and ICES standards.

FEATURES:

• Optional motion sensor,PC reflector


SKU:  HBT-150-240-5-M-HK-BK-90

PRODUCT PARAMETERS

• Input: 120-277VAC
• Efficacy: 170 LM/W
• LED: Lumileds,CRI 80
• CCT: 3000/4000/5000K
• Power: 150/200/240W Selectable
• Lumen:25500/34000/40800 lm
• Dimmable: 0-10V/PWM

• Operating Temperature: -40°C to 50°C
• PF: >0.9
• THD: <20%
• Warranty: 5Years

• Mounting: Hook
• Dimensions: 13.78Dia x 5.35H (without ring, 7.48 with ring) inch
• Master Carton: 14.96*14.96*7.2 inch
• Gross Weight：9 lbs
• Q’TY/CTN：1 pcs / 1 ctn

    SPEC SHEET (click to download)

    INSTALLATION (click to download)
