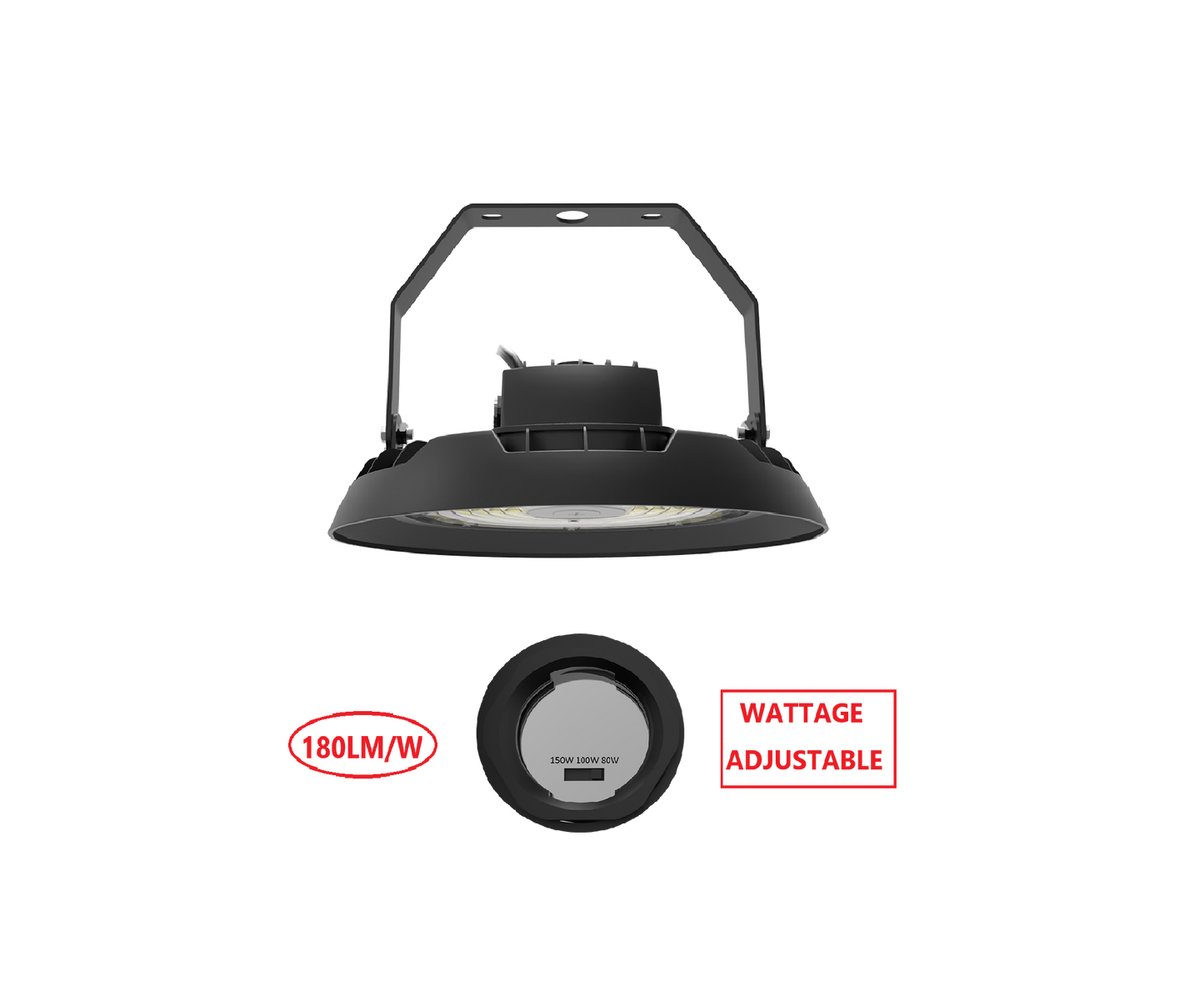

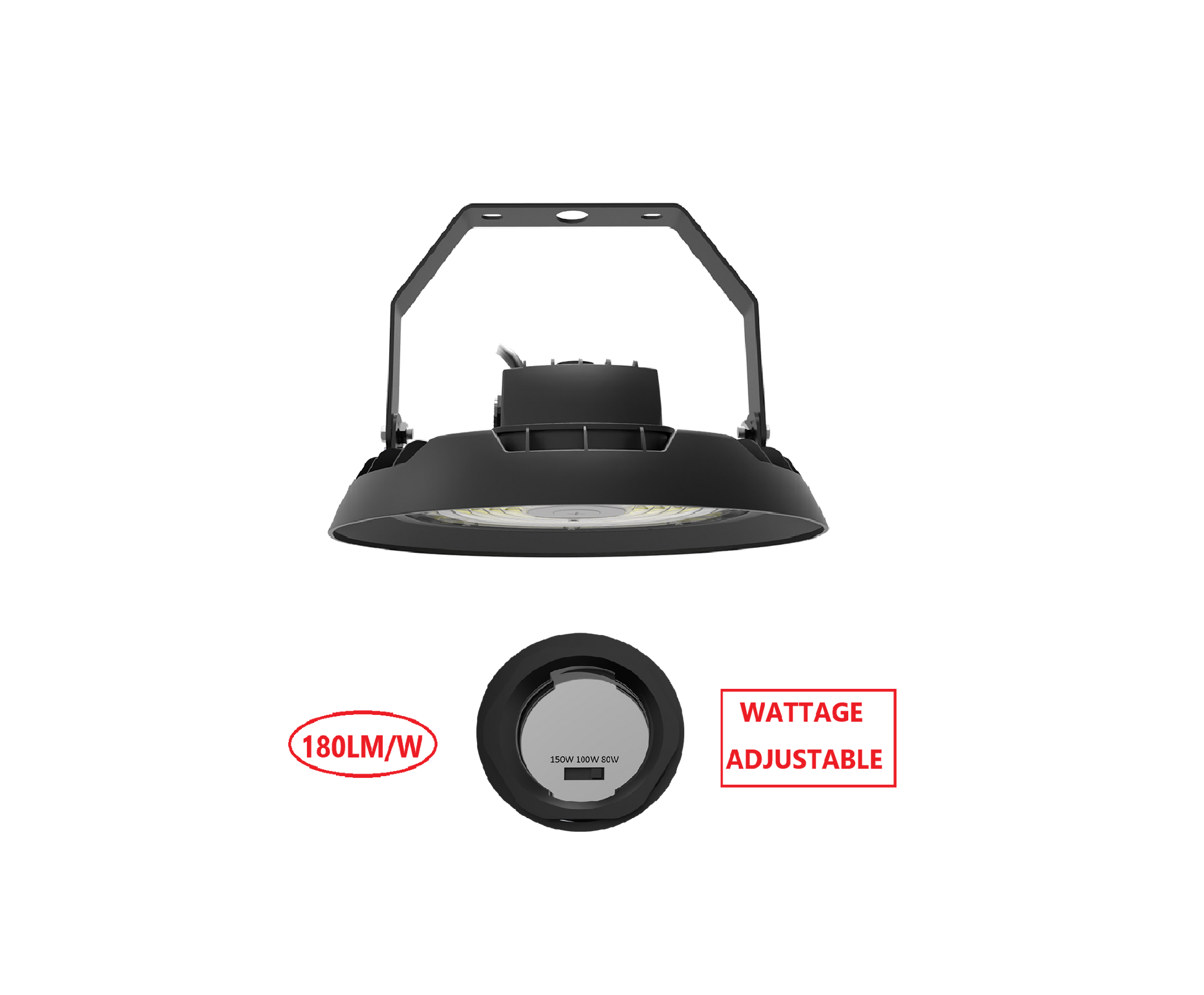

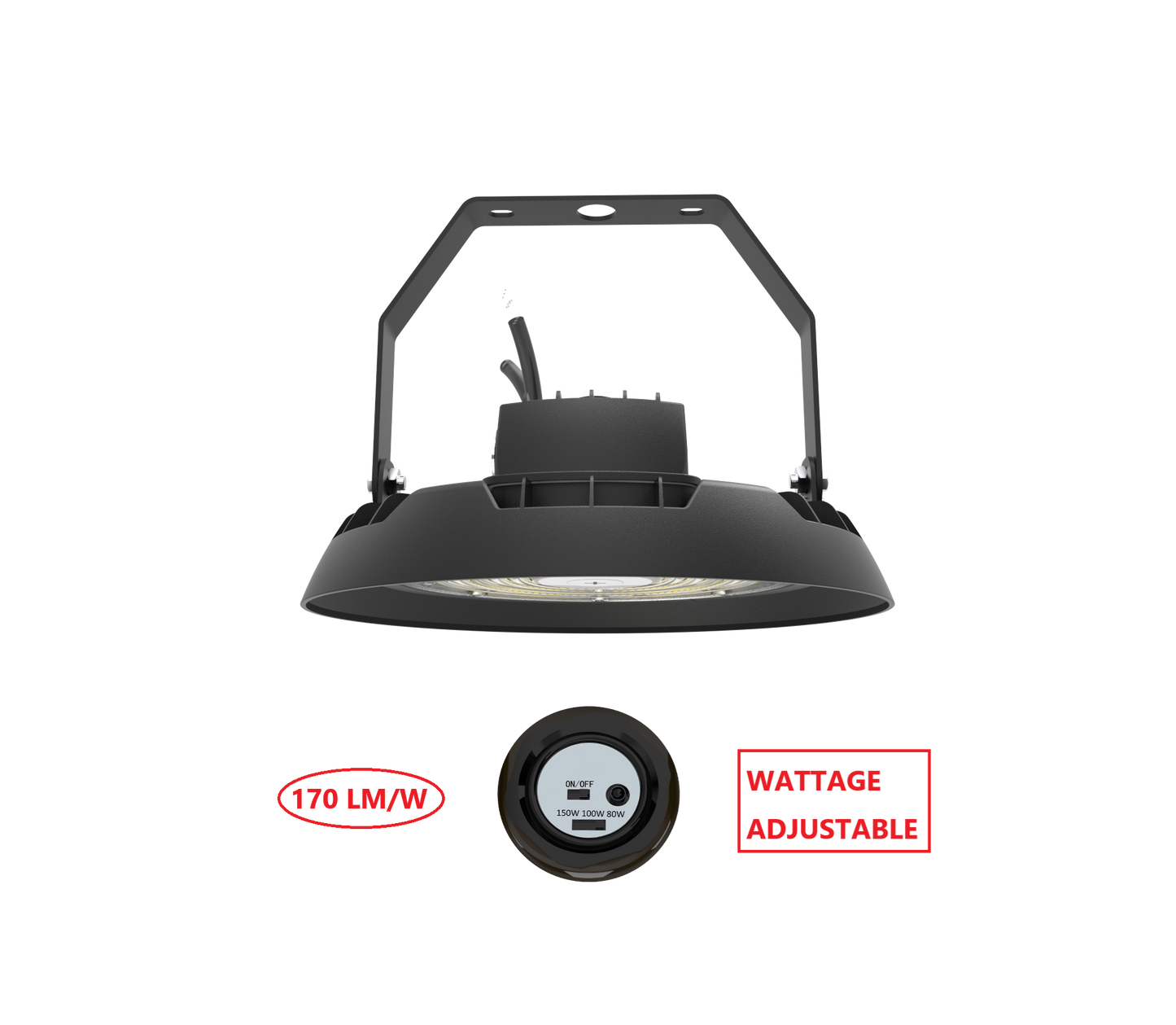

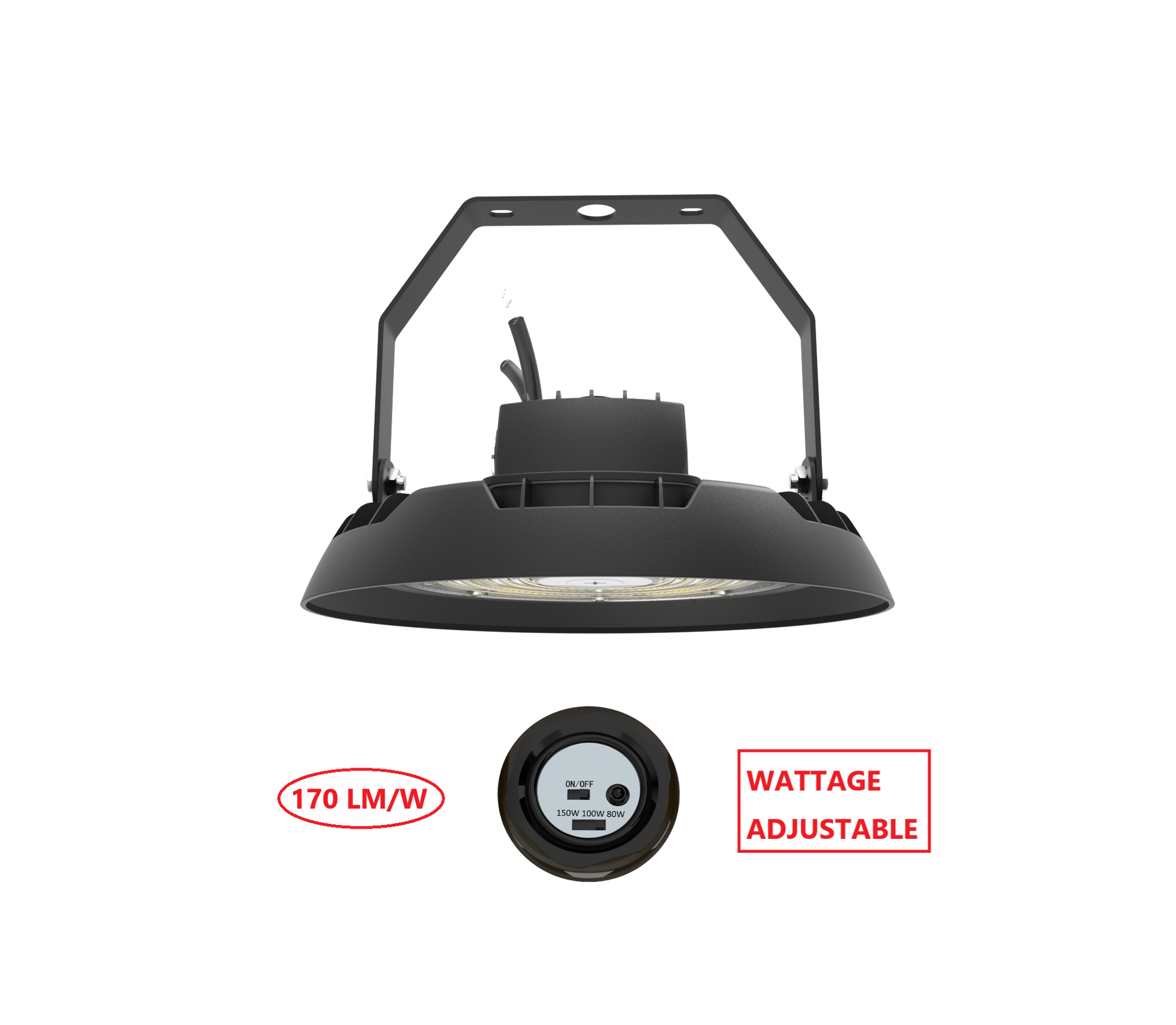

HBT150W LED UFO HIGH BAY LIGHT WITH WATTAGE ADJUSTABLE

150W  WATTAGE ADJUSTABLE LED HIGH BAY LIGHT

INTRODUCTION :

HBT series LED UFO High Light features a die-cast aluminum housing for superior heat dissipation. It is equipped with high-transmittance optical lenses and offers adjustable power settings. Designed for ambient temperatures up to 50°C, it incorporates an IP65-rated waterproof structure.The series is certified by UL/CUL/DLC and complies with FCC and ICES standards.

FEATURES:

• Optional motion sensor,PC reflector


SKU:  HBT-80-150-5-M-YK-BK-90

PRODUCT PARAMETERS

• Input: 120-277VAC
• Efficacy: 180LM/W
• LED: Lumileds,CRI 80
• CCT:3000/4000/5000K
• Power: 80/100/150W (Selectable)
• Lumen: 14400/18000/27000 lm
• Dimmable: 0-10V/PWM

• Operating Temperature: -40°C to 40°C
• PF: >0.9
• THD: <20%
• Warranty: 5Years

• Mounting: Yoke
• Dimensions: 12.2Dia x 4.61H (without ring, 6.73 with ring) inch
• Master Carton: 13.58*13.58*5.55 inch
• Gross Weight：5.7 lbs
• Q’TY/CTN：1 pcs / 1 ctn

     SPEC SHEET (click to download)

    INSTALLATION (click to download)
