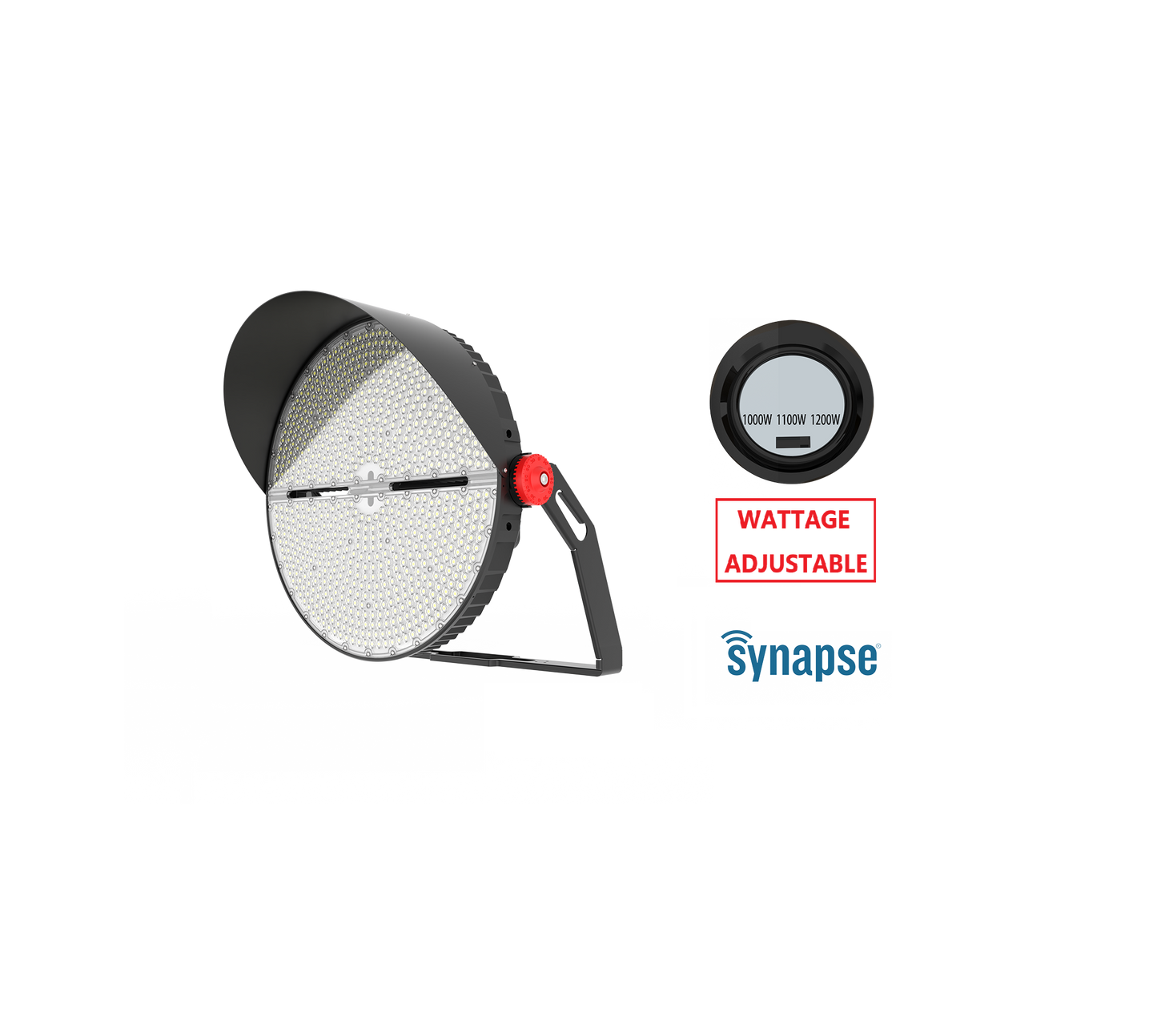

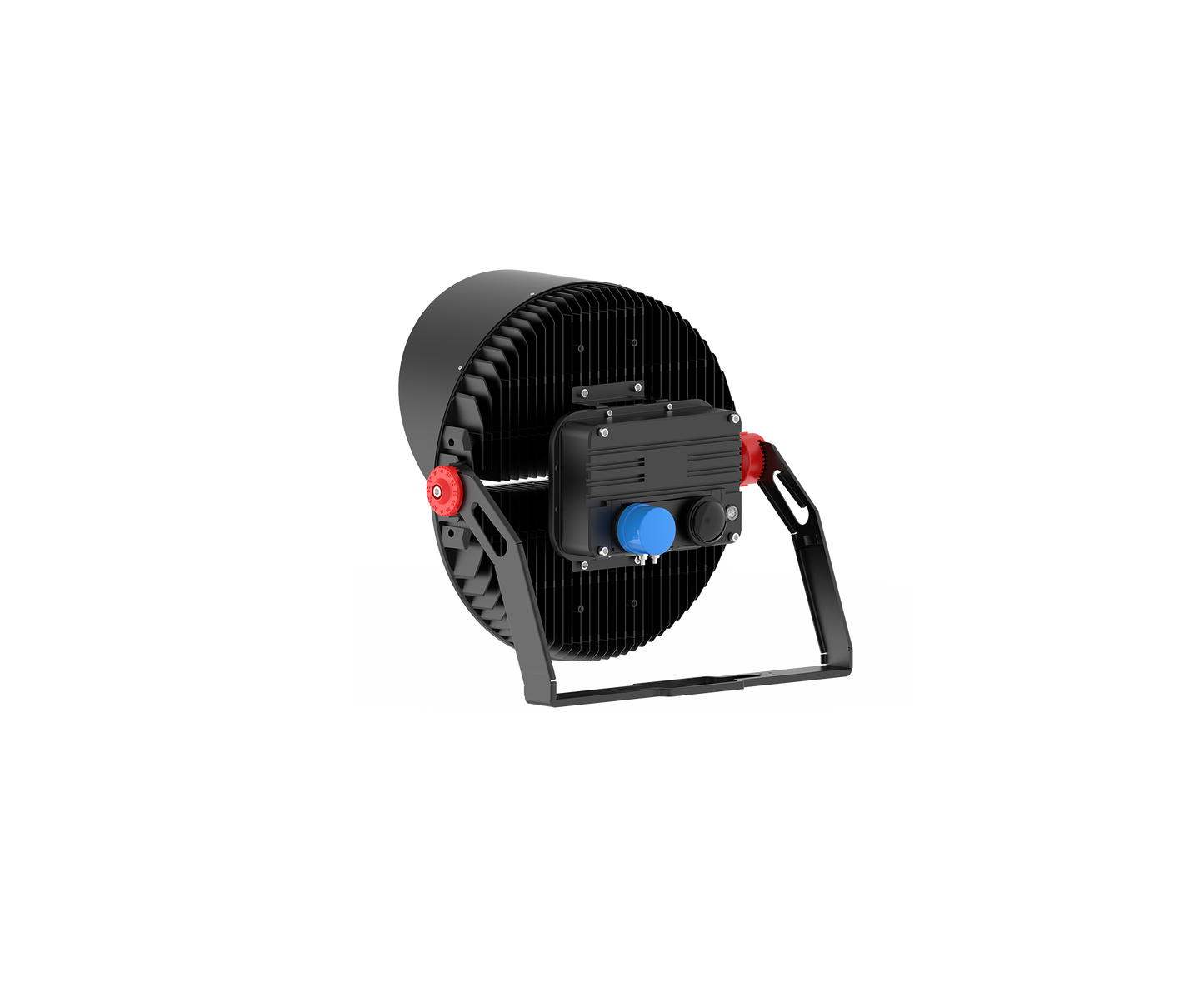

FLW 1200W LED STADIUM LIGHT

ALL IN ONE

INTRODUCTION :

The FLW series provides a variety of control methods for professional sports venues, providing flexible, precise and user-friendly lighting solutions for sports venues.It supports multiple control methods including DAL-2, D4, DMX-RDM, 0-10V, PWM and Synapse.The light efficiency is up to 160 LM/W, and the optional light angles are 10° 15° 30° 45°, which has higher energy efficiency and provides high ground illumination for sports venues.The newly designed junction box facilitates on-site expansion and installation.The slip fitter and yoke are equipped with multiple installation angle adjustable functions to suit more scene needs.

FEATURES:

• Optional Photocell .
• Optional Zhaga socket.
• Optical Lens：Polycarbonate lens with distribution 10°/15°/30°/45°.
• EPA : 2.1FT².
• Heat Sinks: Die-cast aluminum, Akzo Nobel brand powder coating.

SKU: FLW-800-12005-YK-480V-BK-DMX-45

PRODUCT PARAMETERS

• Input: 200-480 VAC
• Efficacy: 150LM/W
• LED: 5050 chip ,CRI>80
• CCT: 3000/4000/5000/5700K
• Power: 1000W/1100W/1200W (Selectable)
• Lumen: 150,000/ 165,000/ 180,000 lm
• Dimmable:  DALI-2 & D4i & DMX-RDM & 0-10V & PWM

• Distribution:10°/15°/30°/45°
• Operating Temperature: -40°C to 40°C
• PF: >0.9
• THD: <20%
• SPD: 10-20KV
• Warranty: 5Years

• Mounting type: Yoke

• Master Carton: 29.33X26.96X10.6 inch
• Gross Weight：51.8 lbs
• Q’TY/CTN：1 pcs / 1 ctn

SPEC SHEET (click to download)

INSTALLATION (click to download)
