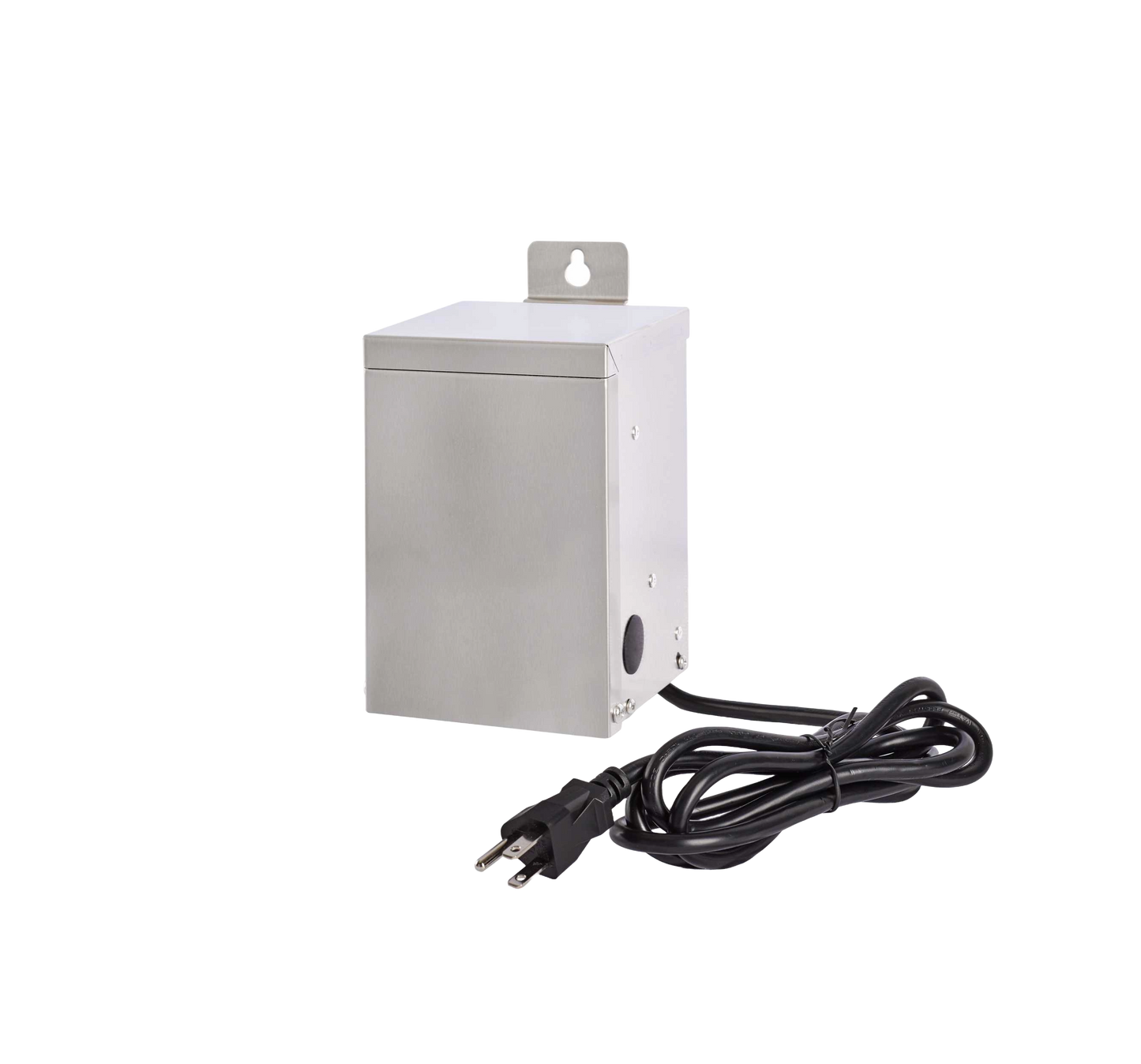

75W LOW VOLTAGE LANDSCAPE LIGHTING TRANSORMER

INTRODUCTION :

The 75W Low Voltage Transformer is engineered for performance in compact outdoor applications. Constructed from heavy-duty Brushed 304 stainless steel, it delivers long-lasting durability and corrosion resistance. Its compact footprint makes it an excellent fit for residential settings such as apartments, condos, and other small spaces.

SKU: ET75W-OP0-15V-WH

FEATURES:

• Toroidal Core: Enhanced reliability, runs cooler and quieter than EI Transformer

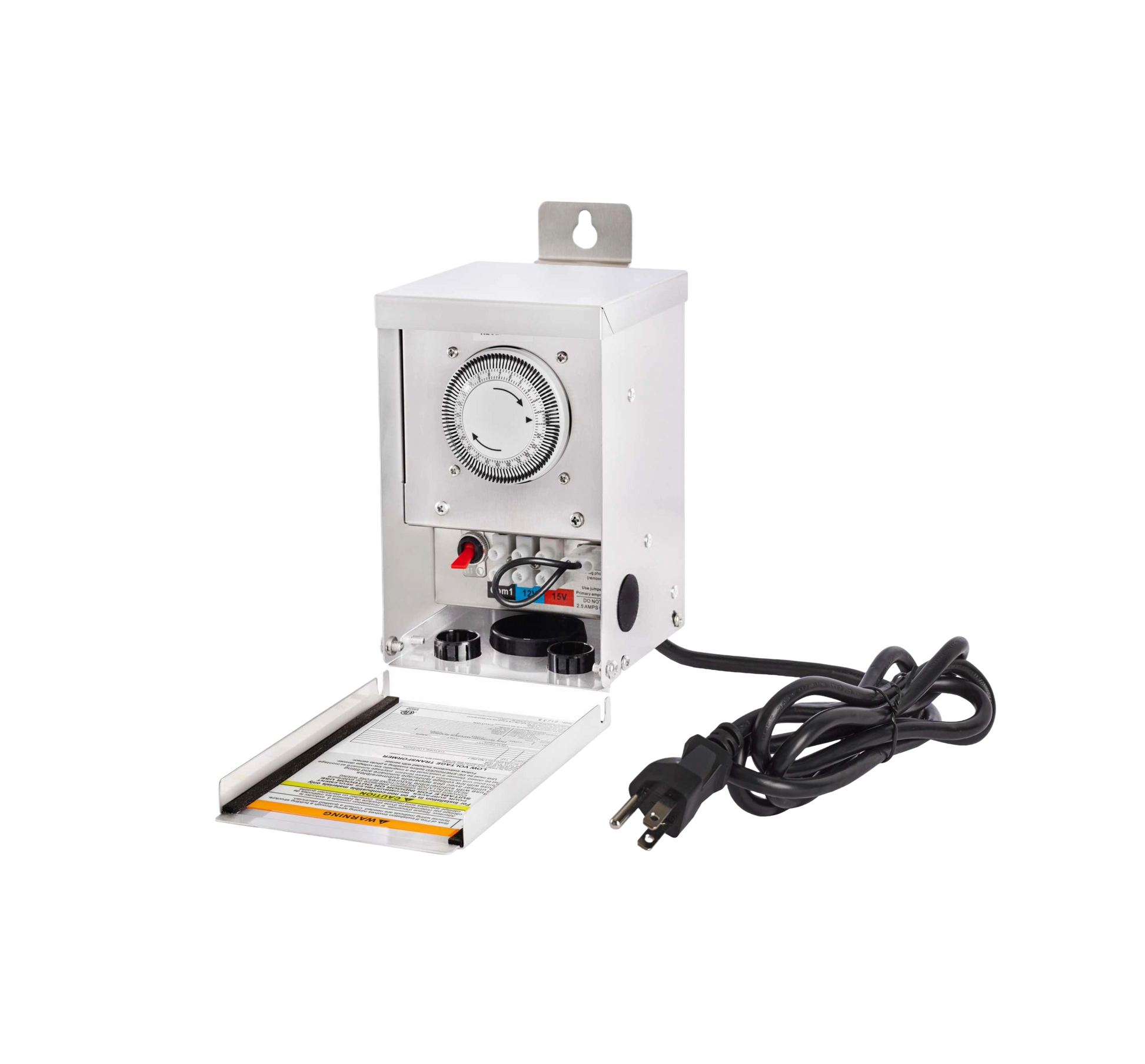

• Timer: Built in Mechanical Timer.

• Multiple Output: Compensate for voltage drop across longer wire runs
• Control device receptacle: Optional timer and photocell receptacle allows you to set ON/OFF times
• Knockouts: Plastic Knockouts for easy removal and cable routing
• Warranty: Lifetime on enclosure, 5 years on core
• Suitable for indoor and outdoor use

• Photocell Receptacle: Standard receptacle for plug and play options.

• Quieter, with greater reliability and higher efficiency.
• Circuit Protection:
  Primary: Automatic (auto reset) Thermal Switch in core
  Secondary: 7A Circuit Breaker
• ETL Listed, conforms to UL 1838 Standard

PRODUCT PARAMETERS

• Power: 75 Watts.
• Output Voltage: 12V & 15 V.
• Input: 120V VAC, 50/60Hz.
• Power Cord: 5 1/2 ft black 18 AWG SJTW cord and plug set.
• Enclosure: Brushed 304 Stainless Steel.
• Weight: 6.6lbs.
• Circuit Protection:
  Primary: Automatic (auto reset) Thermal Switch in core.
  Secondary: 7A Circuit Breaker .

SPEC SHEET (click to download)
