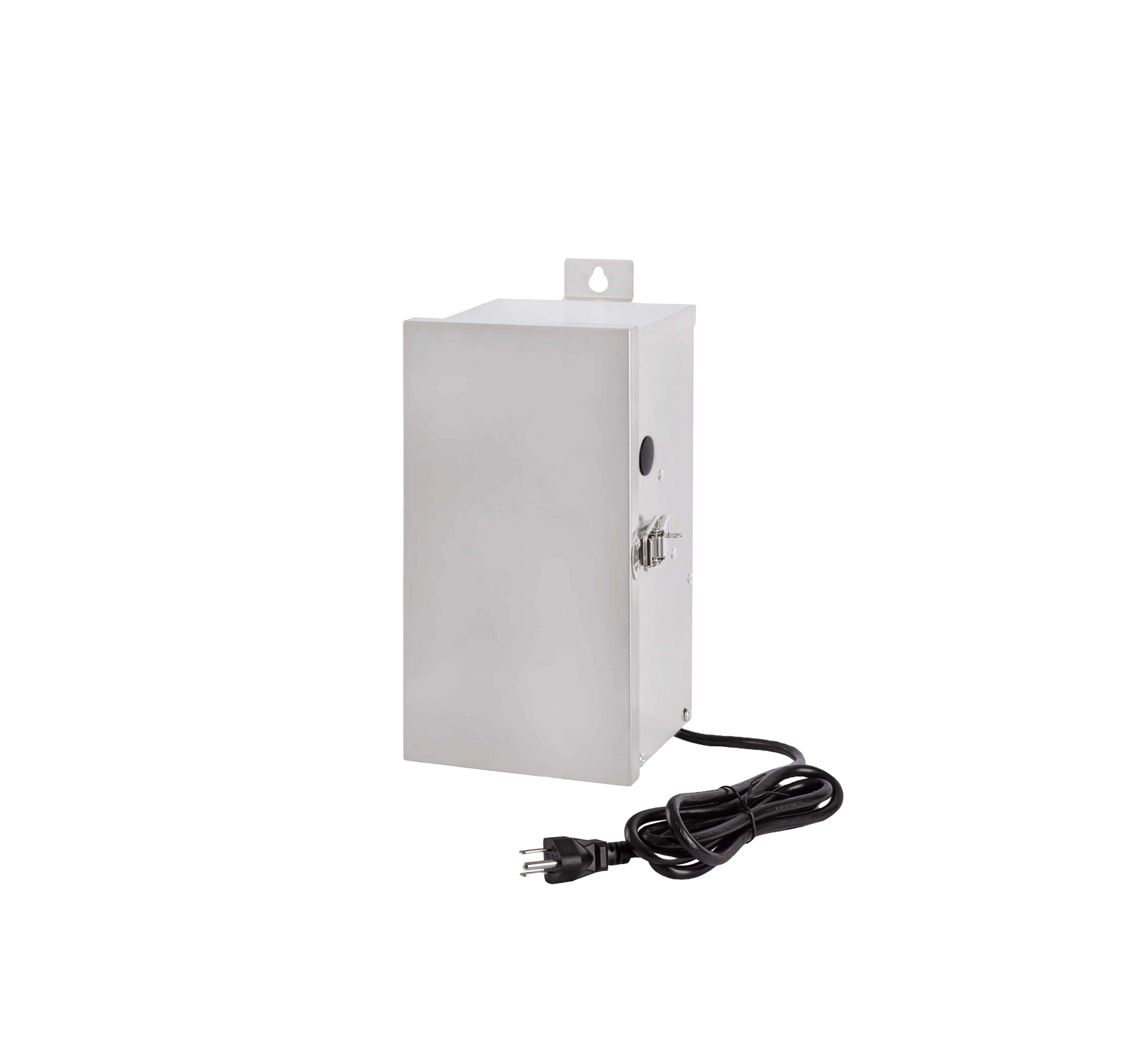

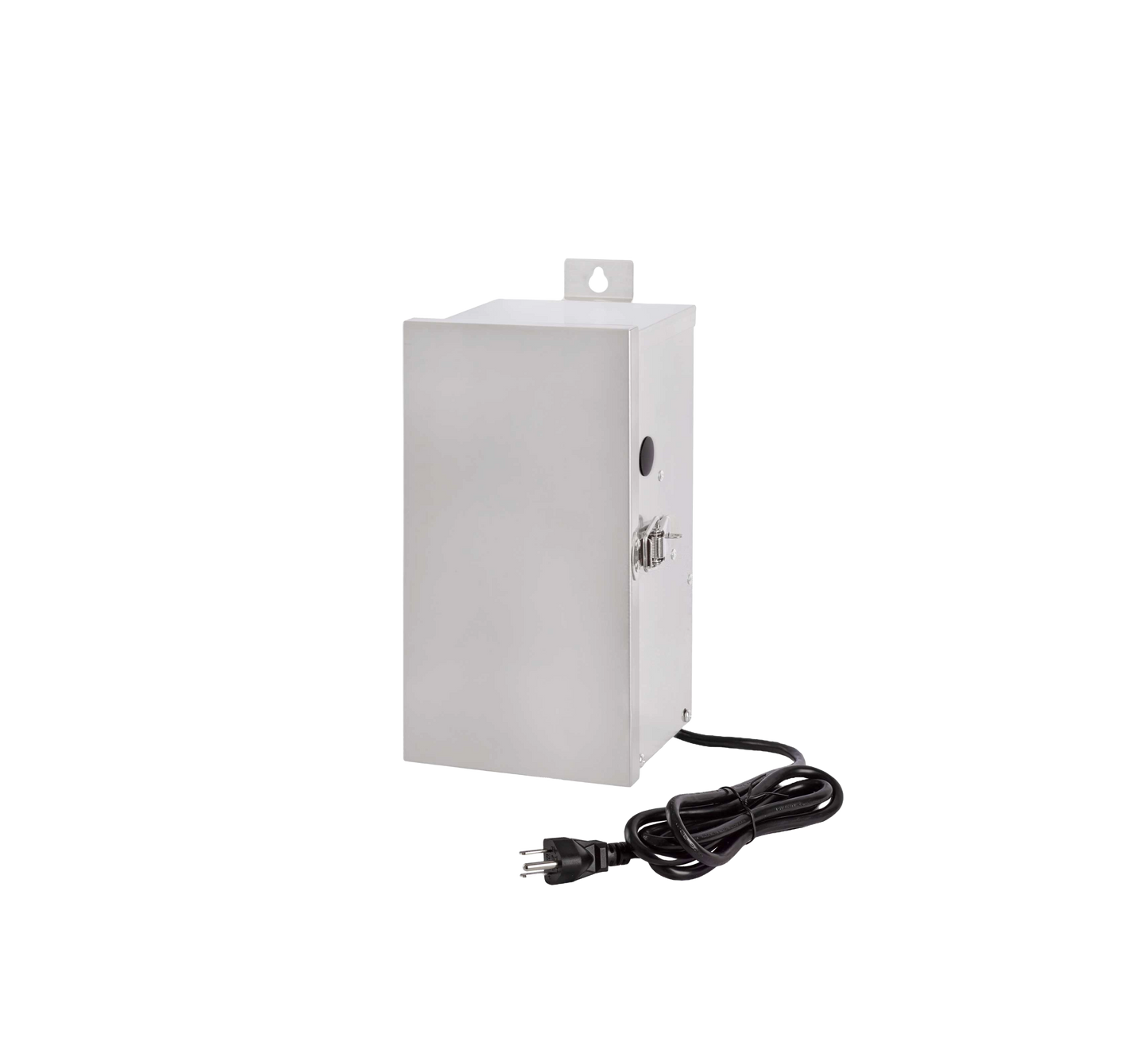

150W LOW VOLTAGE LANDSCAPE LIGHTING TRANSORMER

INTRODUCTION :

The 150W Low Voltage Transformer offers a balanced solution for medium-sized outdoor lighting systems, combining dependable performance with compact design. Crafted from heavy-duty 304 stainless steel, it offers superior durability and corrosion resistance in any environment. With higher power capacity and multiple voltage output, it’s ideal for residential and commercial installations requiring longer runs or higher loads—while maintaining the same easy manual access and streamlined operation.

SKU: ET150W-OP0-15V-WH

FEATURES:

• Toroidal Core: Enhanced reliability, runs cooler and quieter than EI Transformer.
• Multiple Output: Compensate for voltage drop across longer wire runs.

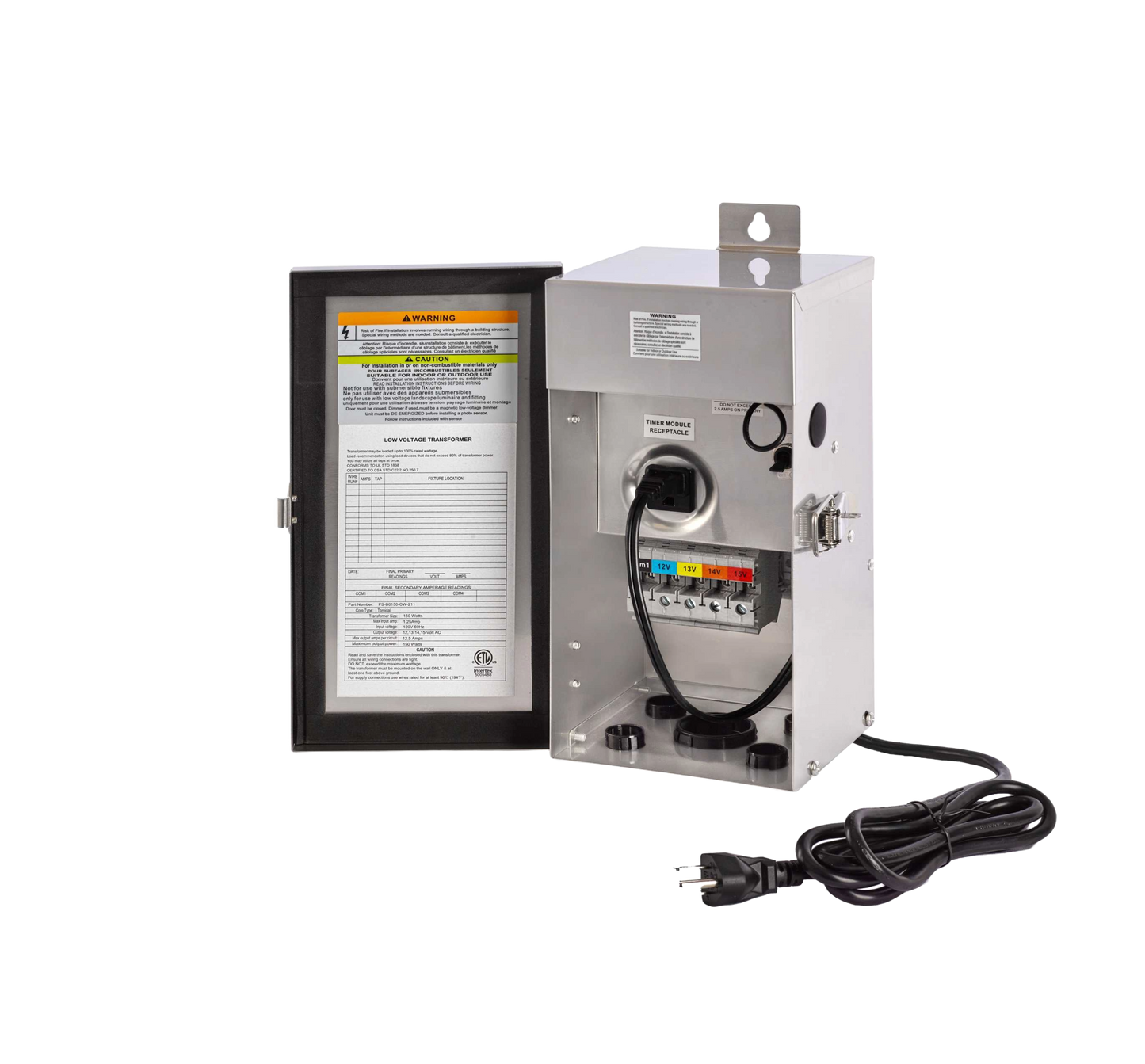

• Control device receptacle: Optional timer and photocell receptacle allows you to set ON/OFF times.
• Knockouts: Plastic Knockouts for easy removal and cable routing.
• Warranty: Lifetime on enclosure, 5 years on core.
• Suitable for indoor and outdoor use.
• ETL Listed, conforms to UL 1838 Standard.

PRODUCT PARAMETERS

• Power: 150 Watts.
• Input: 120V 60Hz
• Output: 12V, 13V, 14V & 15V AC
• Power Cord: 5 1/2 ft black 18 AWG SJTW cord and plug set
• Enclosure: 304 Stainless Steel
• Weight: 13.9lbs
• Circuit Protection:
  Primary: Automatic (auto reset) Thermal Switch in core.
  Secondary:  13A Circuit Breaker .

SPEC SHEET (click to download)
