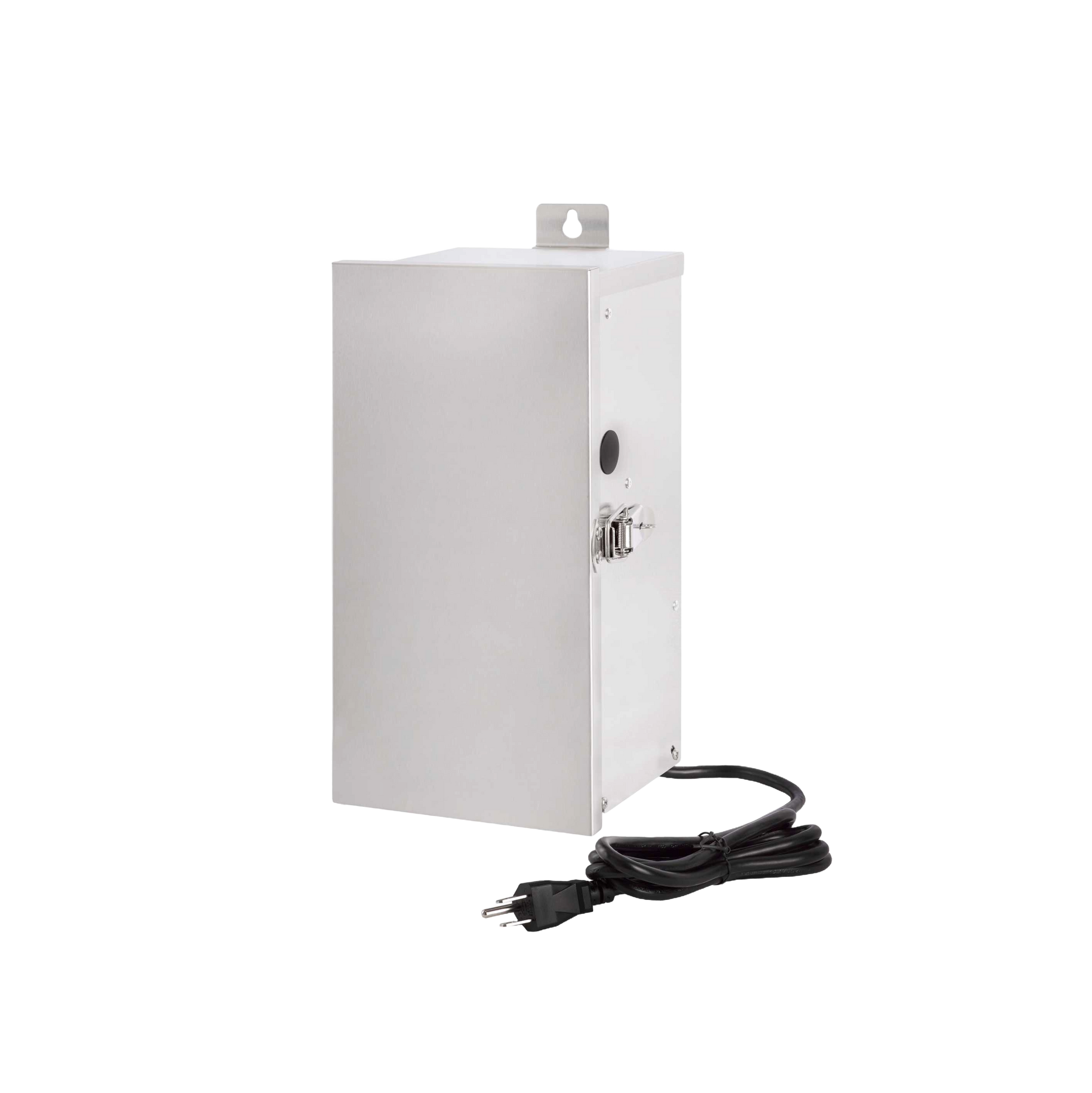

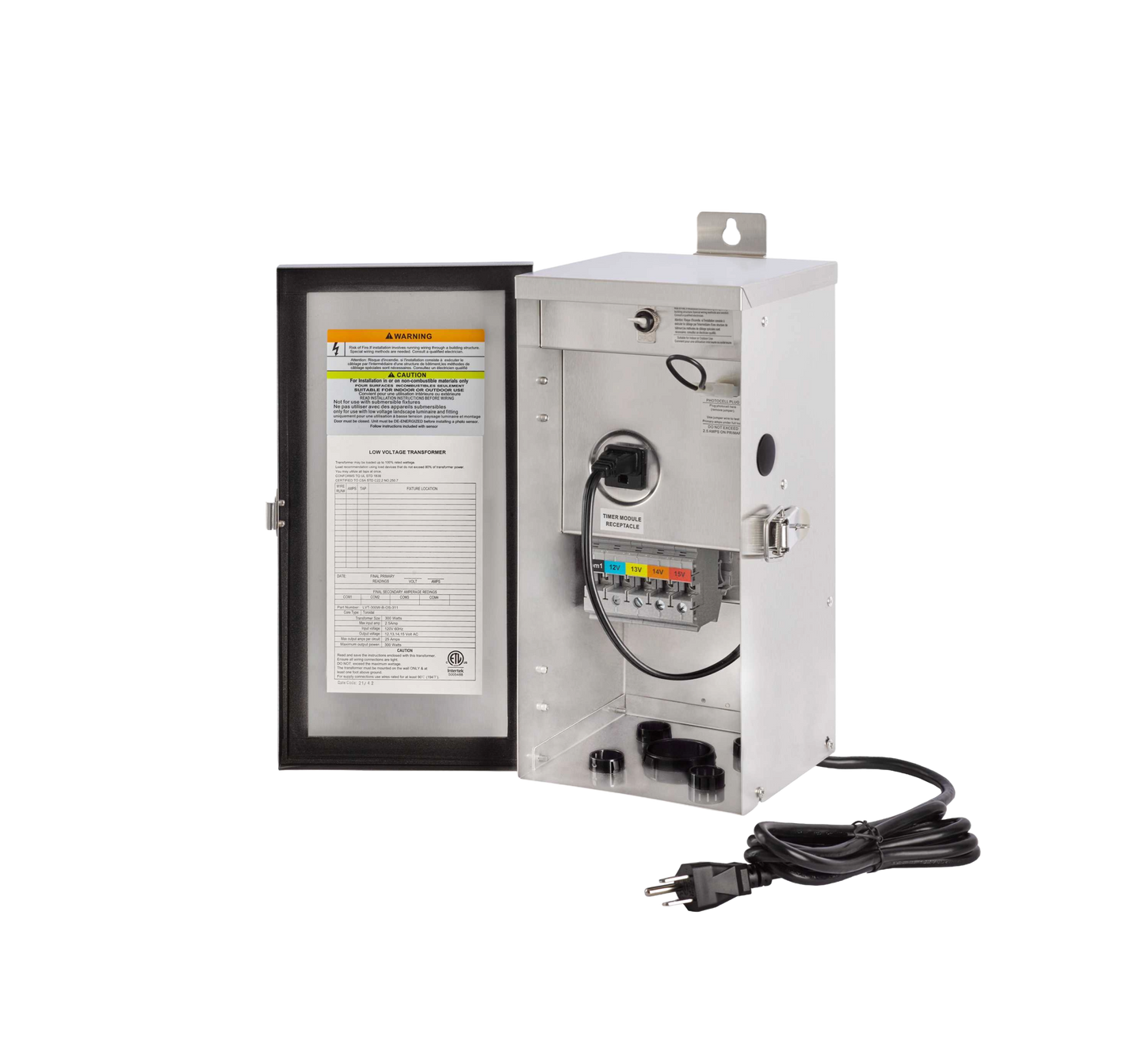

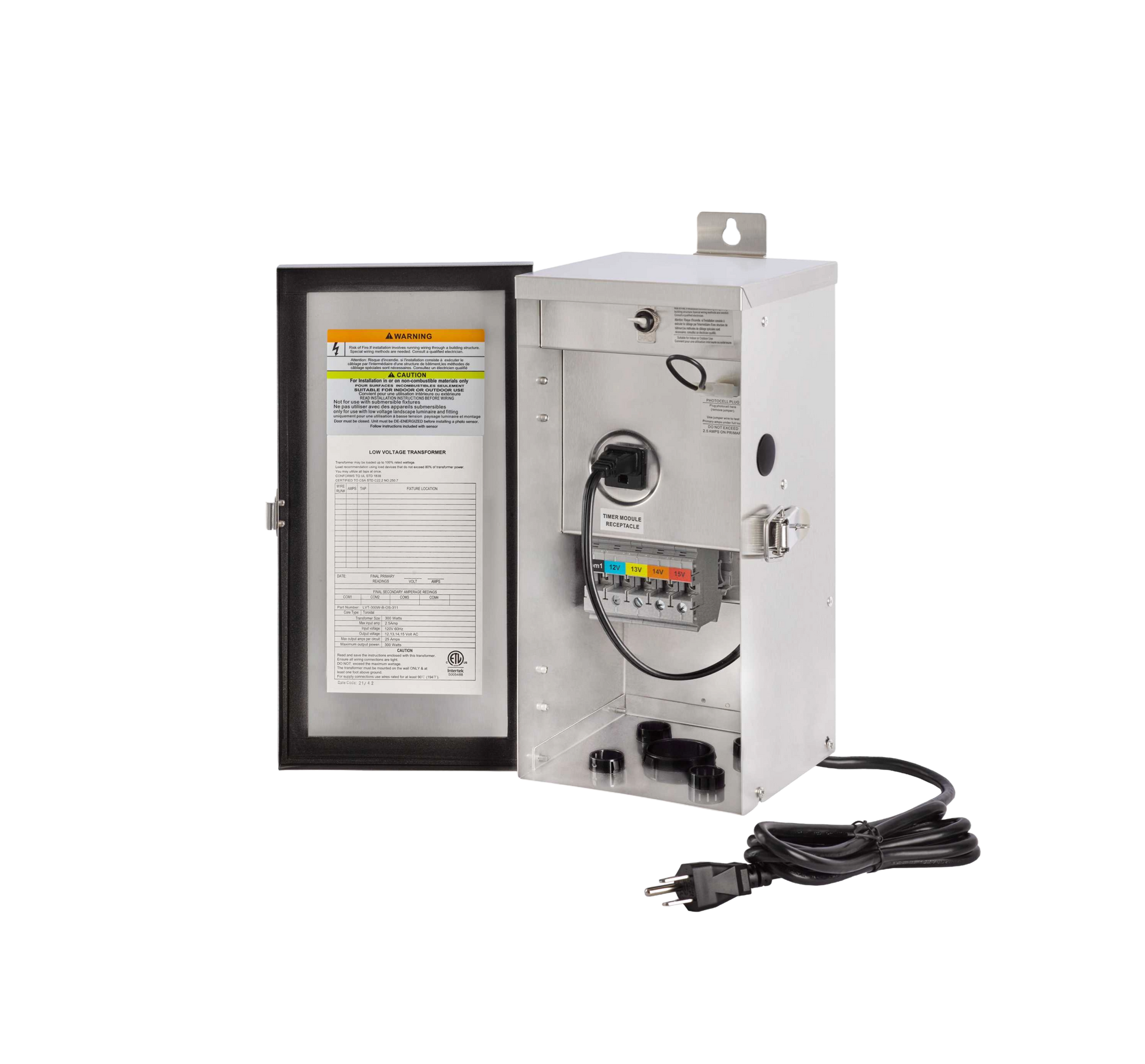

300W LOW VOLTAGE LANDSCAPE LIGHTING TRANSORMER

INTRODUCTION :

The 300W Low Voltage Transformer is built to deliver powerful, reliable performance for medium to large-scale outdoor lighting applications. Crafted from heavy-duty Brushed 304 stainless steel, it offers superior durability and corrosion resistance in any environment. With higher power capacity and multiple voltage output, it’s ideal for residential and commercial installations requiring longer runs or higher loads—while maintaining the same easy manual access and streamlined operation.

SKU: ET300W-OP0-15V-WH

FEATURES:

• Toroidal Core: Enhanced reliability, runs cooler and quieter than EI Transformer.
• Multiple Output: Compensate for voltage drop across longer wire runs.
• Control device receptacle: Optional timer and photocell receptacle allows you to set ON/OFF times.

• Knockouts: Plastic Knockouts for easy removal and cable routing.
• Warranty: Lifetime on enclosure, 5 years on core.
• Suitable for indoor and outdoor use.
• ETL Listed, conforms to UL 1838 Standard.

PRODUCT PARAMETERS:

• Power: 300 Watts.
• Input: 120V 60Hz.
• Output: 12V, 13V, 14V & 15V AC.
• Power Cord: 6 ft black 18 AWG SJTW cord and plug set.
• Enclosure: Brushed 304 Stainless Steel.
• Weight: 15.4lbs.
• Circuit Protection:
  Primary: Automatic (auto reset) Thermal Switch in core.
  Secondary: 25A Circuit Breaker .

SPEC SHEET (click to download)
