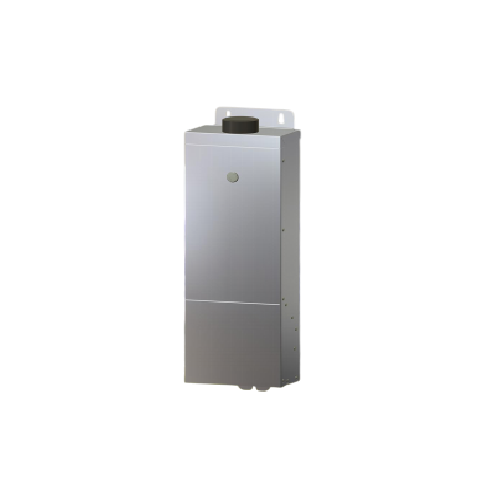

300W LOW VOLTAGE LANDSCAPE LIGHTING SMART WIFI TRANSORMER

INTRODUCTION :

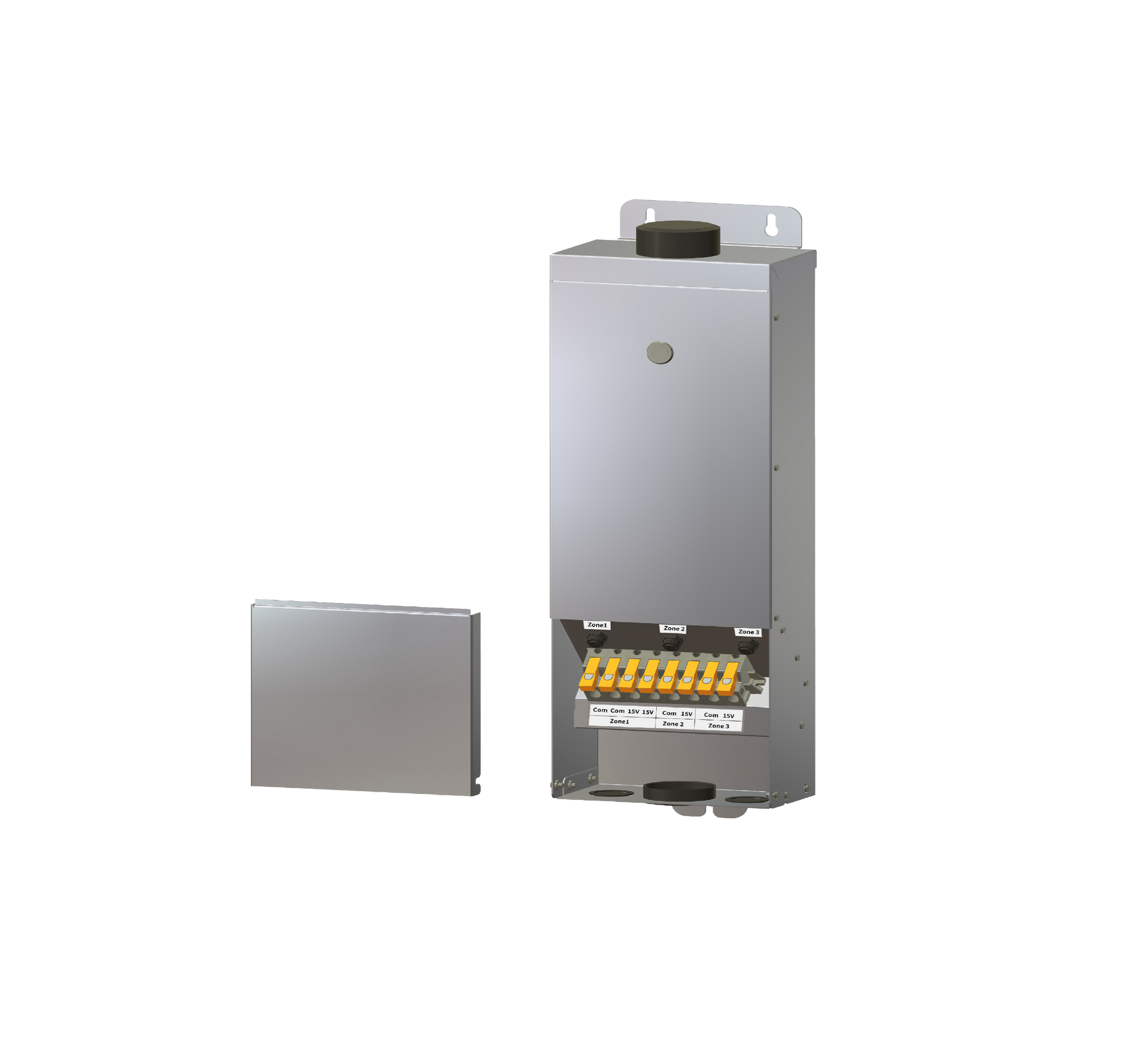

The Smart Control Transformer allows homeowners to create and schedule up to three independent lighting zones, providing customizable control over specific areas based on their preferences. Design with 8 angled terminal blocks for simplified wiring and a durable stainless-steel housing, it’s perfectly suited for outdoor use.

FEATURES:

• 300W combined over 3 independent zones
• Allocate power to each zone arbitrarily
• Work with 2.4GHz Wi-Fi only
• Wi-Fi Controlled via Smart Life APP by TUYA
• Private label App available in iOS & Android
• Circuit Breaker protection on each zone
• Real-time Power Consumption Monitoring
• Professional Grade • Operating temperature is -20° C to +40° C
• Suitable for wet location

SKU: ET300W-OP15V-WIFI

PRODUCT PARAMETERS:

• Power: 300 Watts.
• Input: 120V 60Hz.2.5A Max
• Output:
  Zone 1: Com Com 15V 15V
  Zone 2: Com 15V
  Zone 3: Com 15V
• Power Cord: 6-foot, heavy-gauge, grounded, water-resistant power cord with integrally molded plug
• Enclosure: Brushed 304 Stainless Steel.
• Weight: 13.9lbs.
• Circuit Protection:
  Primary: Automatic (auto reset) Thermal Switch in core
  Secondary: 25A Circuit Breaker on each zone

SPEC SHEET (click to download)
