HBW480W LED LINEAR HIGH BAY LIGHT WITH WATTAGE ADJUSTABLE

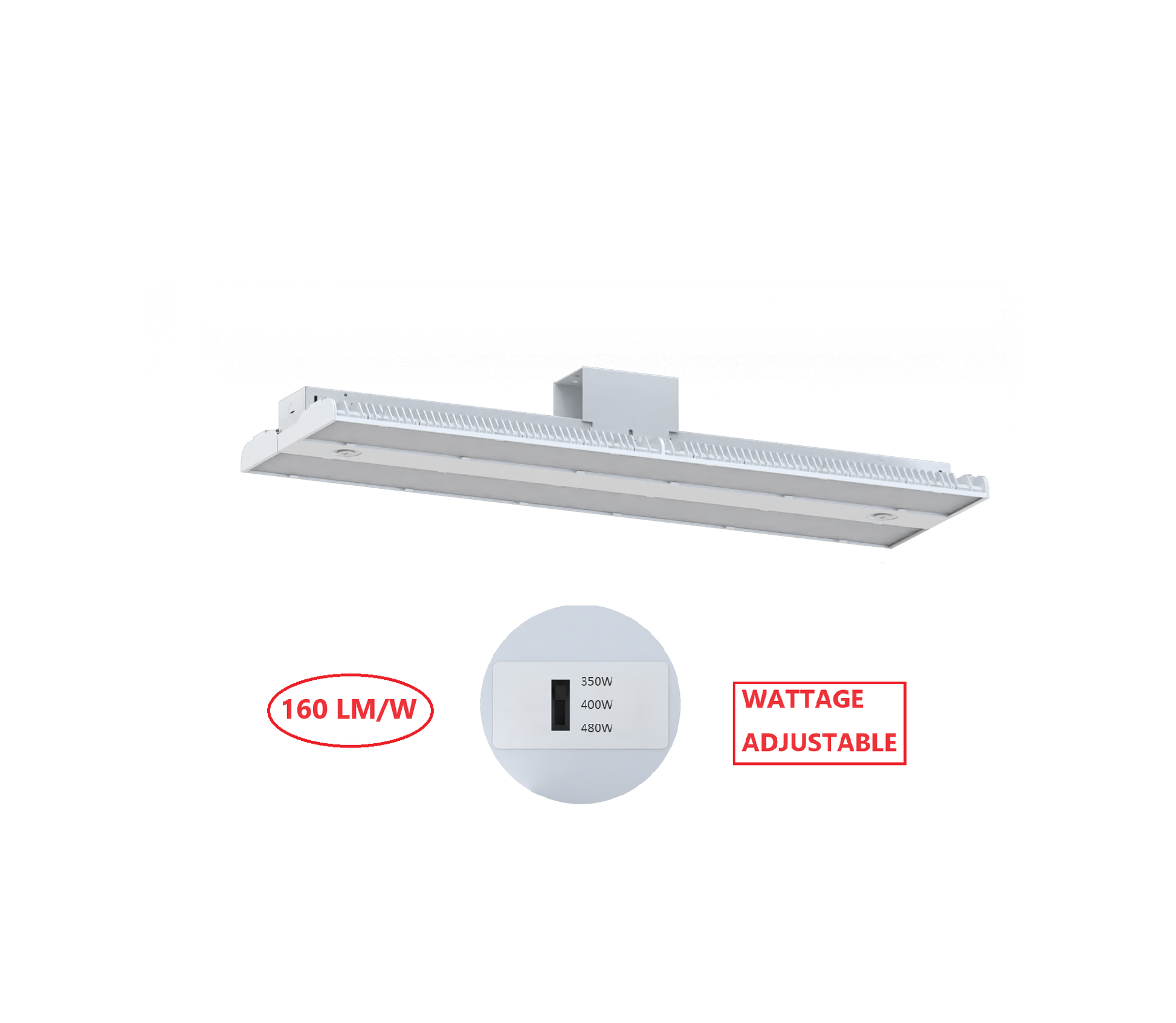

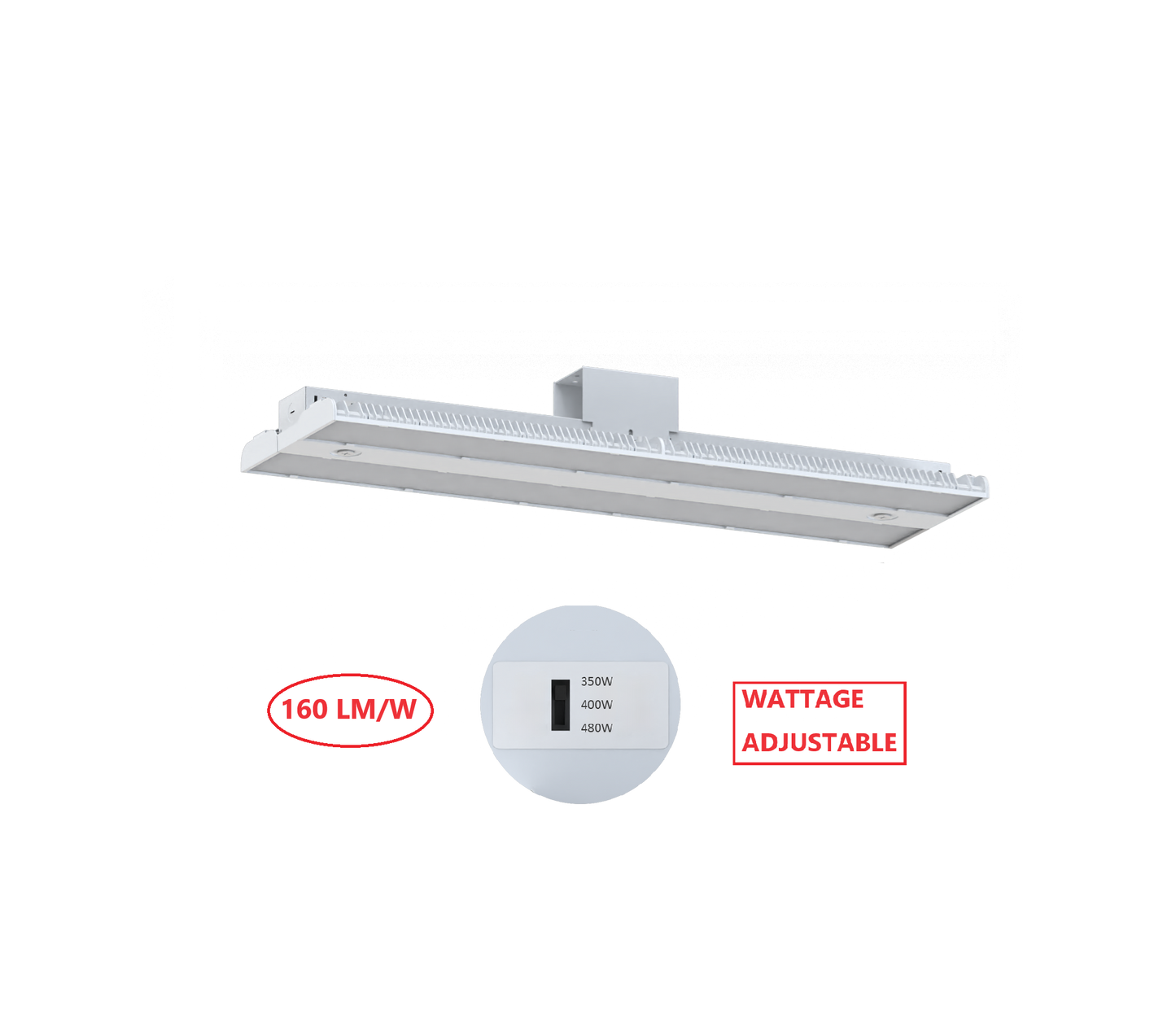

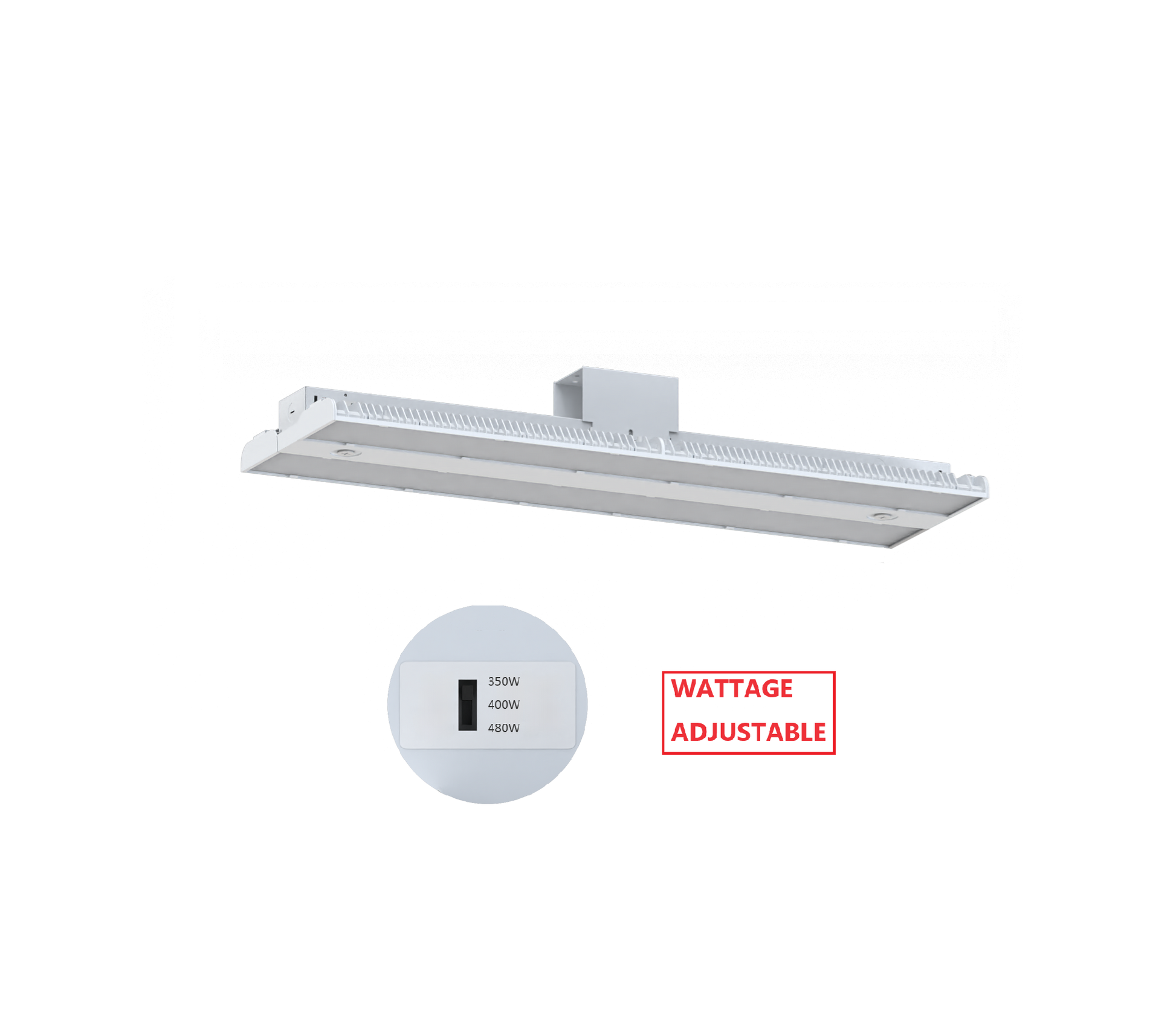

480W  WATTAGE ADJUSTABLE LED  LINEAR HIGH BAY LIGHT

INTRODUCTION :

Linear High Bay Light HBW series LED shell adopts aluminum die-casting shell, excellent heat dissipation performance, adjustable power, easy and quick replacement of PC pieces without tools, suitable for -40°C~+40°C dry environment. It is UL, CUL, DLC, FCC certified.

FEATURES:

• Optional Sensor ,Transformers, Emergency LED Driver, Chains


SKU:  HBW-350-480-5-M-SM-WH

PRODUCT PARAMETERS

• Input: 120-277VAC
• Efficacy: 160 LM/W
• LED: Lumileds, CRI80
• CCT: 4000/5000K
• Power: 350/400/480W (Selectable)
• Lumen: 56000/64000/76800 lm
• Dimmable: 0-10V/PWM

• Optic type：90°/110°/60*110°
• Operating Temperature: -40°C to 40°C
• PF: >0.9
• THD: <20%
• Warranty: 5Years

• Mounting: Surface Mount
• Dimensions: 32.48*10.4*2.52 inch
• Master Carton: 33.50*10.63*3.43 inch
• Gross Weight：10.1 lbs
• Q’TY/CTN：1 pcs / 1 ctn

    SPEC SHEET (click to download)

    INSTALLATION (click to download)
