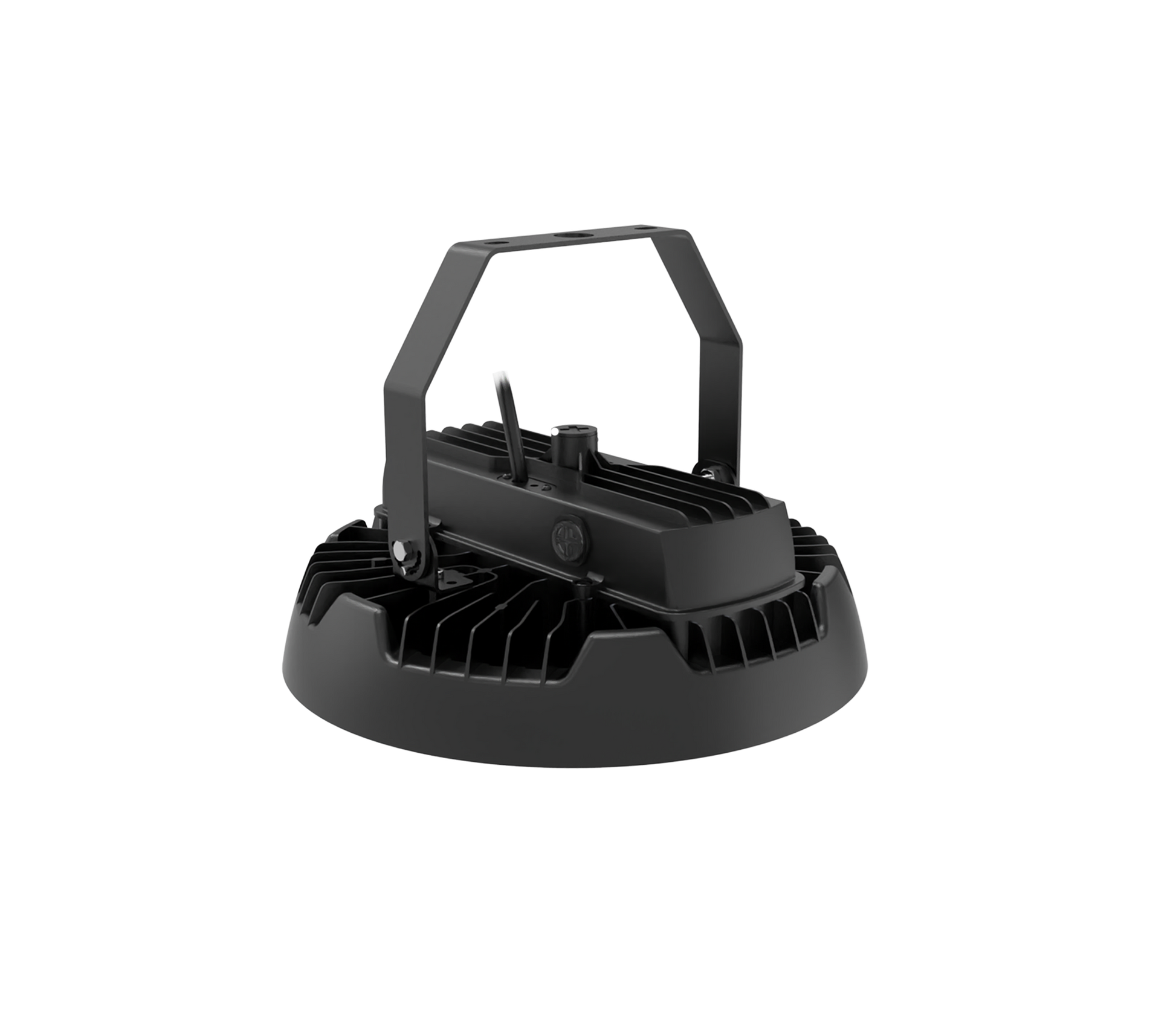

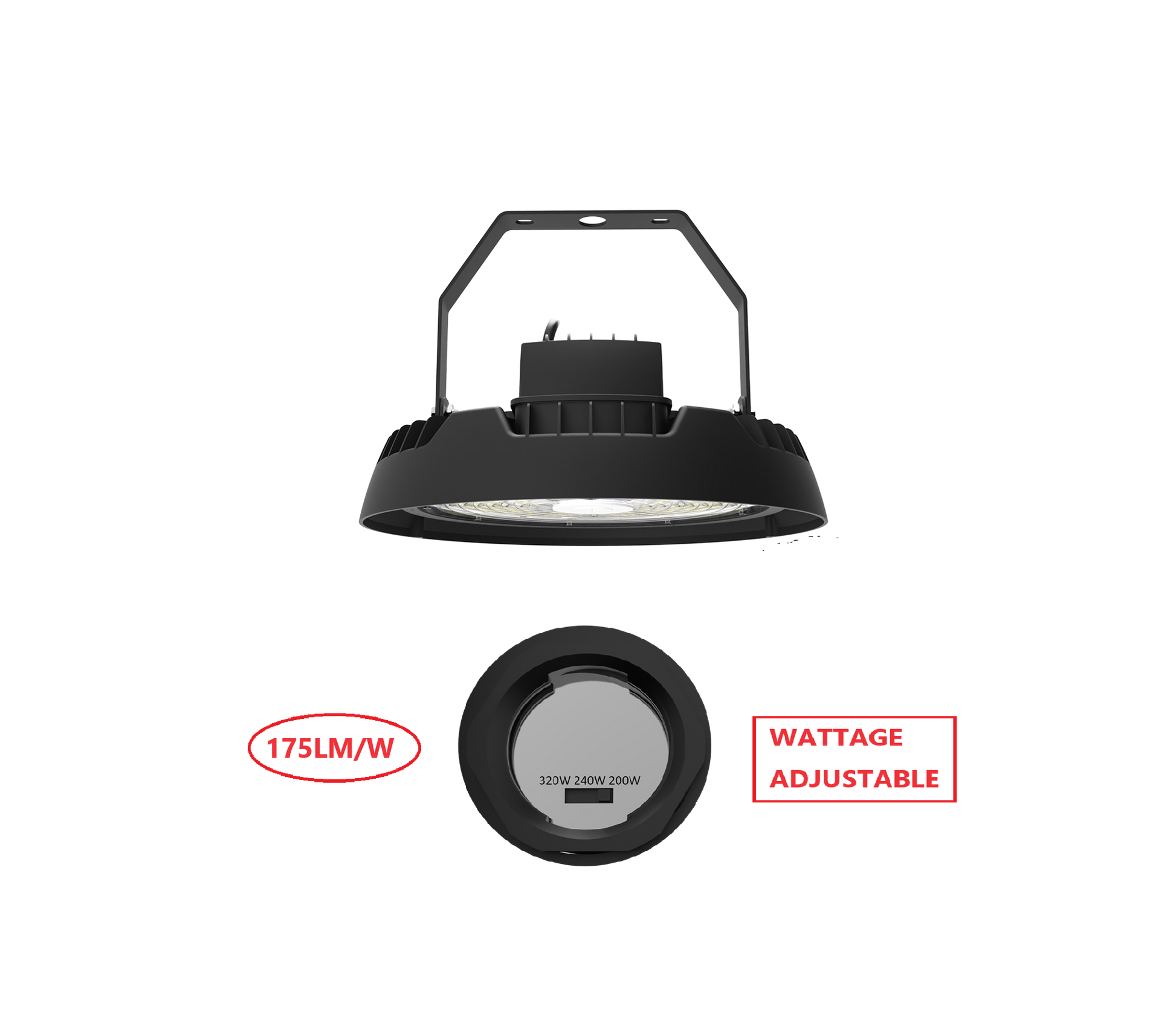

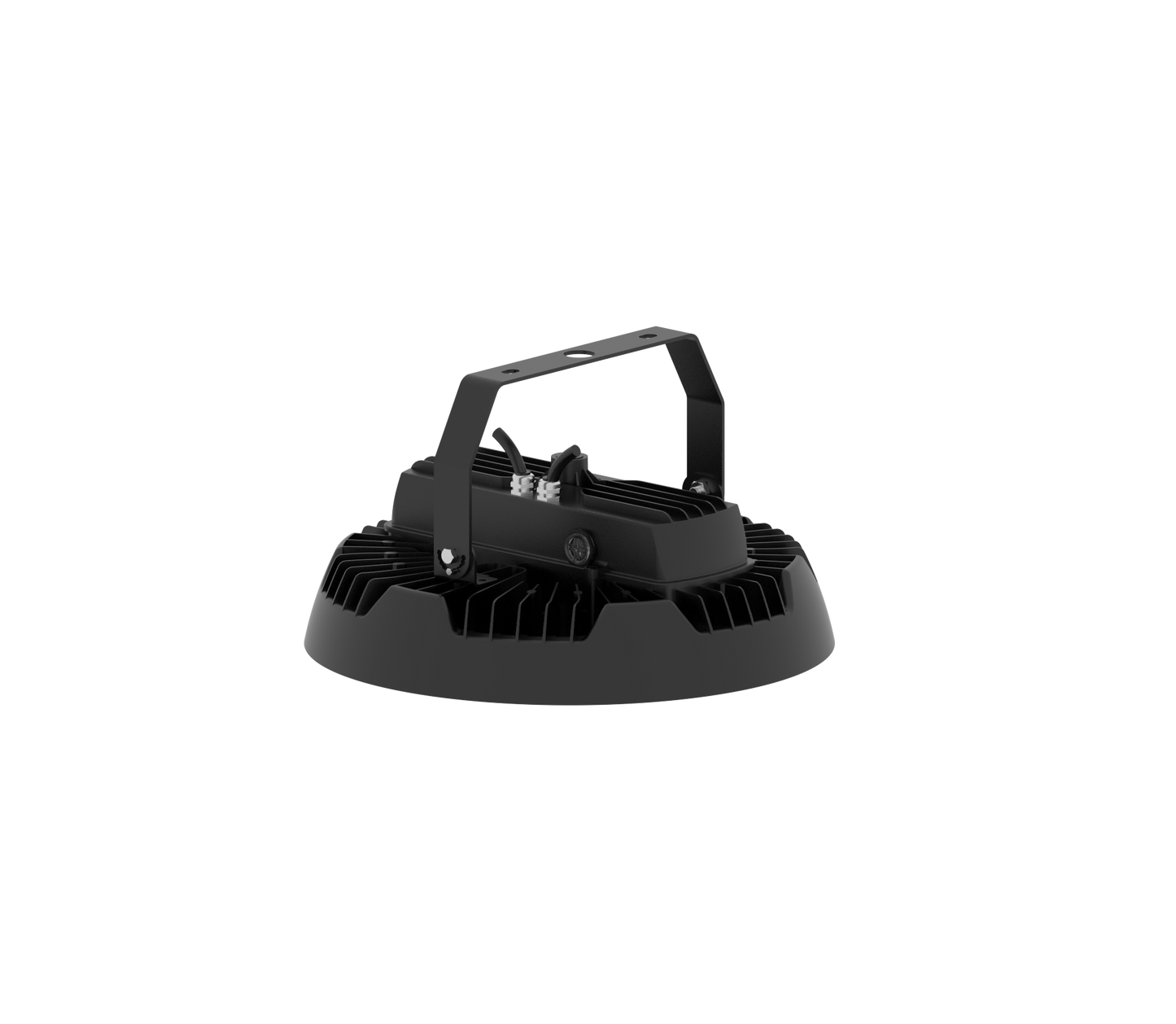

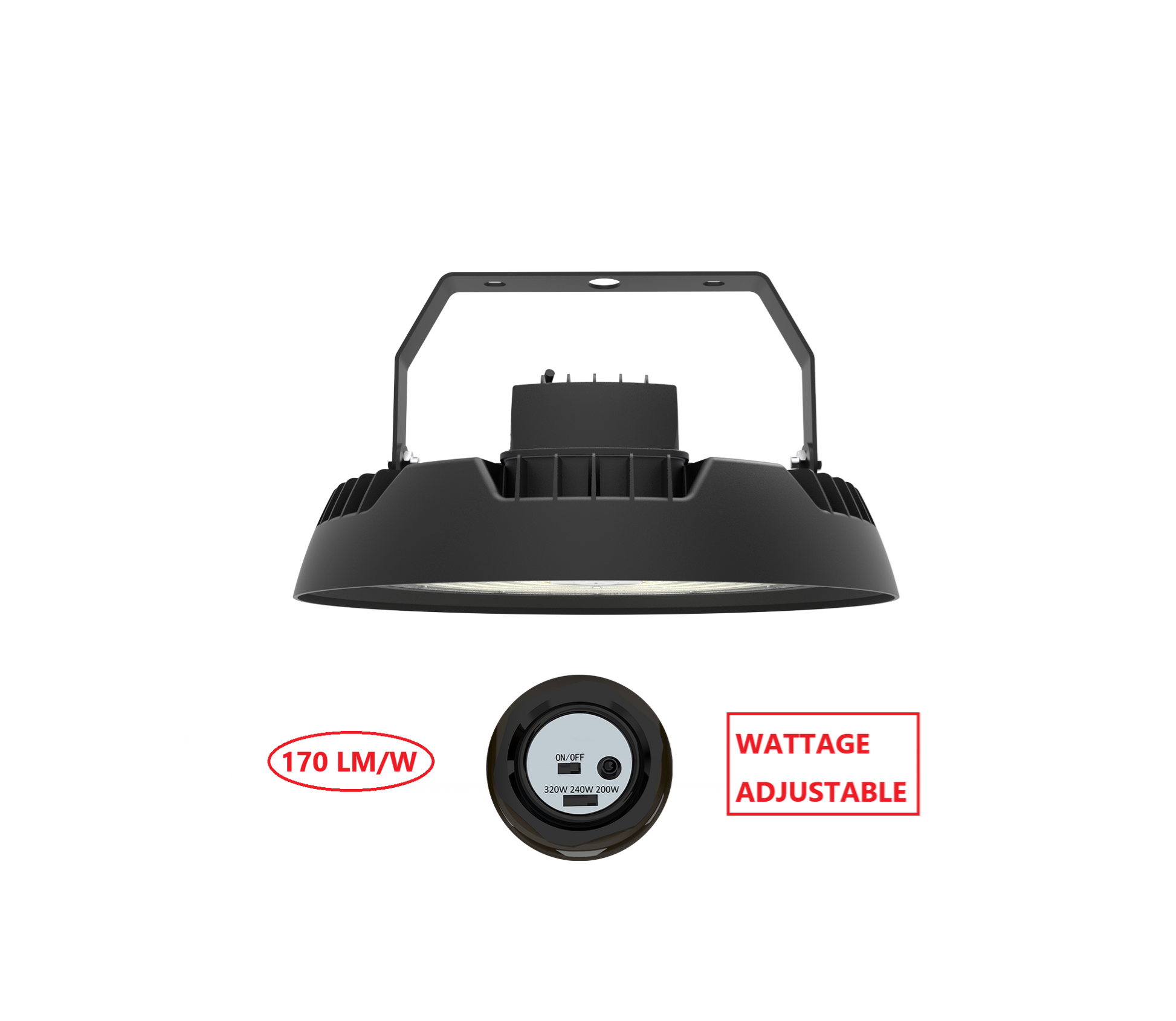

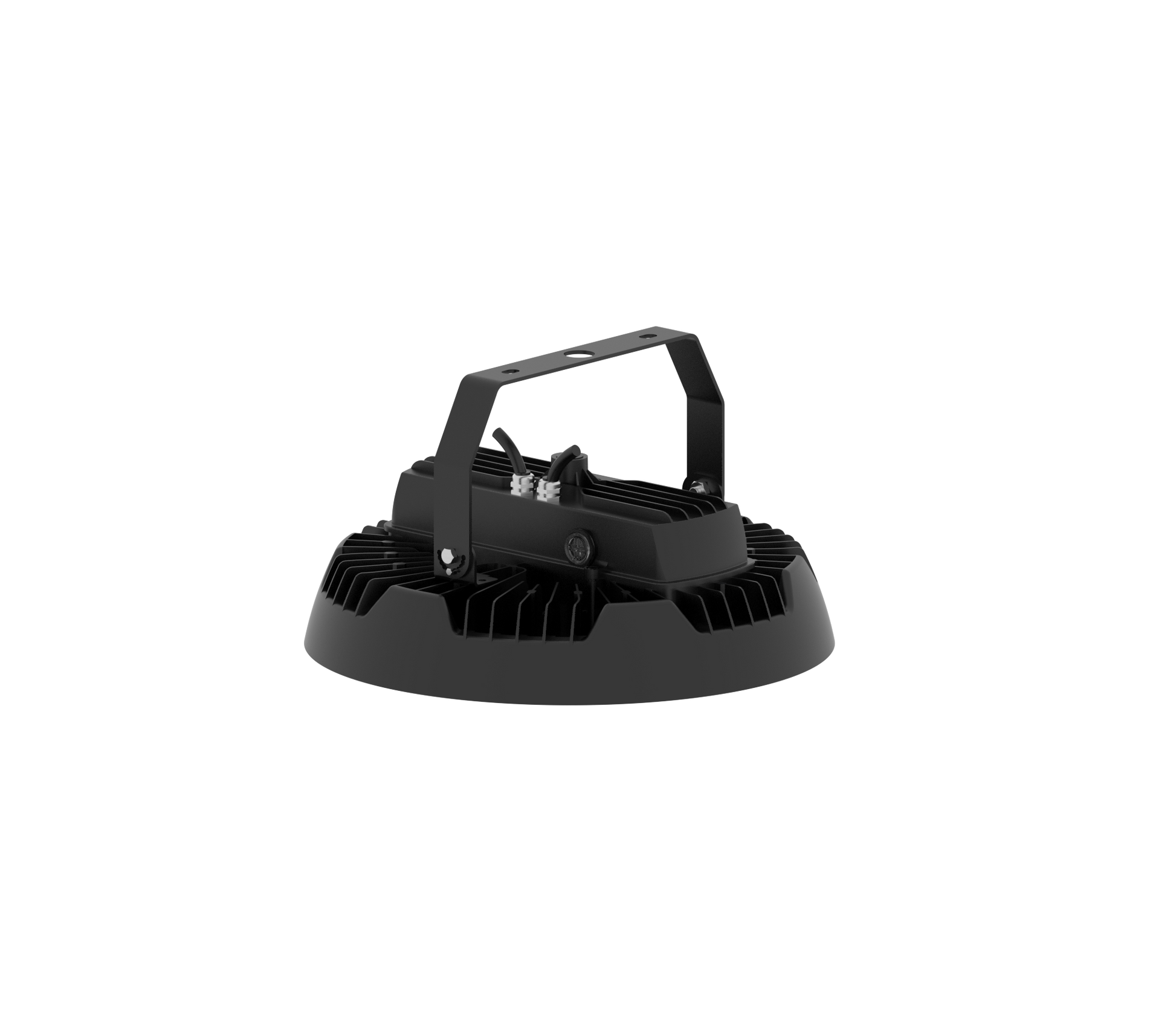

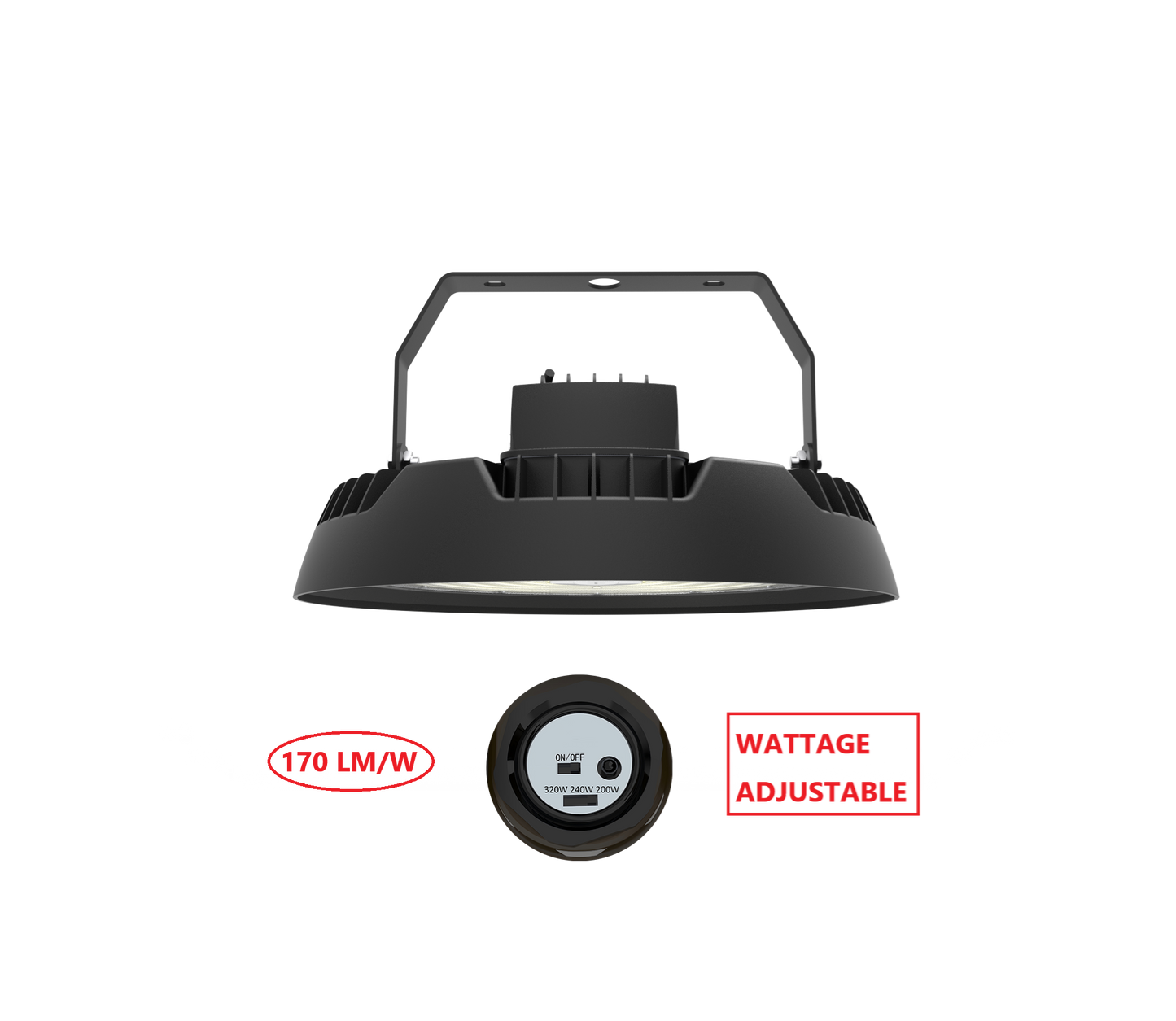

HBT320W LED UFO HIGH BAY LIGHT WITH WATTAGE ADJUSTABLE

320W  WATTAGE ADJUSTABLE LED HIGH BAY LIGHT

INTRODUCTION :

HBT series LED UFO High Light features a die-cast aluminum housing for superior heat dissipation. It is equipped with high-transmittance optical lenses and offers adjustable power settings. Designed for ambient temperatures up to 50°C, it incorporates an IP65-rated waterproof structure.The series is certified by UL/CUL/DLC and complies with FCC and ICES standards.

FEATURES:

• Optional motion sensor,PC reflector


SKU:  HBT-200-320-5-M-YK-BK-90

PRODUCT PARAMETERS

• Input: 120-277VAC
• Efficacy: 175 LM/W
• LED: Lumileds, 2835, CRI 80
• CCT: 3000/4000/5000K
• Power: 200/240/320W (Selectable)
• Lumen: 35000/42000/56000 lm
• Dimmable: 0-10V/PWM

• Operating Temperature: -40°C to 40°C
• PF: >0.9
• THD: <20%
• Warranty: 5Years

• Mounting type: Yoke

• Dimensions: 15.94Dia x 5.67H (without ring, 7.68 with ring) inch
• Master Carton: 16.3*16.3*6.5 inch
• Gross Weight：10.2 lbs
• Q’TY/CTN：1 pcs / 1 ctn

     SPEC SHEET (click to download)

     INSTALLATION (click to download)
